H401-T-PAD
The Heated Flat Metal Plate can be positioned on any surface (Table Top, Cabinet work surface, etc) to create a temperature controlled flat surface.
Features
T range: 27 to 45°C
T sensor accuracy: ±0.1°C
T accuracy on specimen: ±0.3°C, after self calibration, if room temperature remains within ±1°C
Plate calibration can be performed in the lab by the operator
Dimensions:
- 174x234 mm H401-T-PAD-SMALL
- 297x210 mm (A4) H401-T-PAD-MEDIUM
- 420x300 mm (A3) H401-T-PAD-LARGE
Requires H401-T-CONTROLLER
![H401-T-PAD-[DIMENSIONS]_420x280.jpg](/images/okaImages/product_categories/ivf/H401-T-PAD-[DIMENSIONS]_600x600.jpg)
H401-T-CONTROLLER
T - range: from ambient to 60°C
External T - sensor (included)
On-board Data logging and download routines to USB drive
One controllers can control independently up to two devices
Self calibration routines allow to improve temperature accuracy
Data Logging
On-Board Data Logging - stored in local memory
Download to USB
H401-T-CONTROLLER
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
Features
- T - range: from ambient to 60°C
- T - accuracy on specimen: ± 0.3°C
- External T - sensor (included).
- On-board Data logging and download routines to USB drive.
- On-board logging of calibration and alarm events.
- Alarm buzzer and External Alarm Connector
- One controllers can control independently up to two devices.
- Self calibration routines allow to improve temperature accuracy.
- Password protected procedure for periodic calibration against certified thermometer
- Integrated in third party software: Nikon NIS Elements; Metamorph; Micromanager
Touch Pad Interface
Beautifully designed, simple to use and very compact.

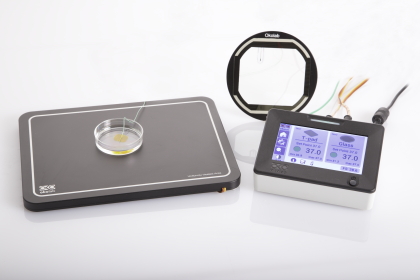

Take advantage of the dual channel option
One channel controls the metal T-Pad.
The other channel controls the Glass Plate.
Data Logging
On-Board Data Logging - stored in local memory
A simple procedure allows to download data to USB.
