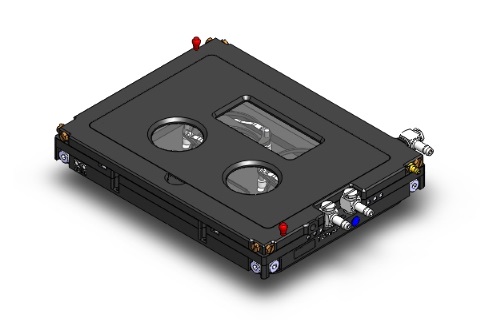

Okolab - H101-K-FRAME

Stage compatibility: fits in the following stages with 160x110 (k-frame) opening

Magnetic interchangeable inserts allow to use:

35/60 mm Petri
1x3 in. / 1x2 in. chambered slides
6-12-24-48-96 MW plates (without addition of inserts). One MW lock is required to hold the MW plate in the chamber

Available Inserts

MW-LOCK-22.5	Magnetic lock to hold the standard MW plates in the chamber
MW-LOCK-16.5	Magnetic lock to hold the low-profile MW plates in the chamber

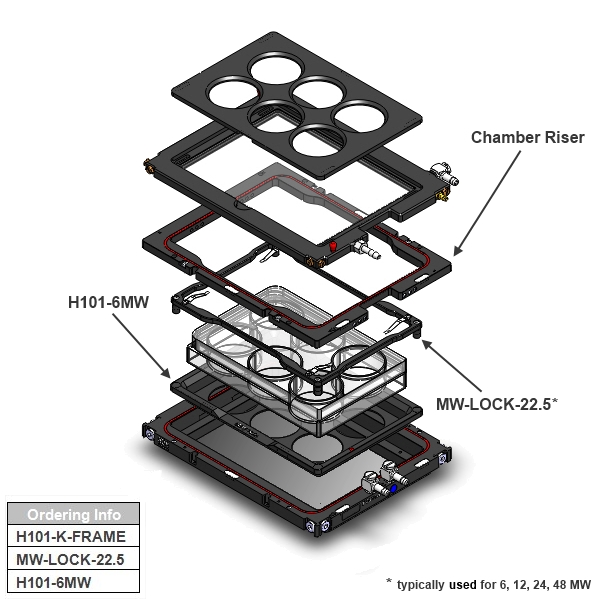

H101-6MW	6 well plates. One MW LOCK required
H101-12MW	12 well plates. One MW LOCK required
H101-24MW	24 well plates. One MW LOCK required
H101-24MW-NUNC	24-well NUNC/GREINER plates. One MW LOCK required
H101-48MW	48-well plates. One MW LOCK required
H101-96MW	96-well plates. One MW LOCK required
H101-1x35-M	#1 35mm Petri-dish
H101-1xGS-M	#1 1x3in. chamberslide
H101-1xLABTEK-M	#1 Lab-Tek 1x2 in. chambered cover glass
H101-1xLABTEK-II-M	#1 Lab-Tek II 1x2 in. chambered cover glass
H101-1x60-M	#1 60mm Petri-dish
H101-1xT25-M	#1 Nunc and Greiner T25 flask
H101-2x35-M	#2 35mm Petri-dish
H101-2xGS-M	#2 1x3in. chamberslides
H101-2xLABTEK-M	#2 Lab-Tek 1x2 in. chambered cover glass
H101-2xLABTEK-II-M	#2 Lab-Tek II 1x2 in. chambered cover glass
H101-2x60-M	#2 60mm Petri-dish
H101-4x35-M	#4 35mm Petri-dish

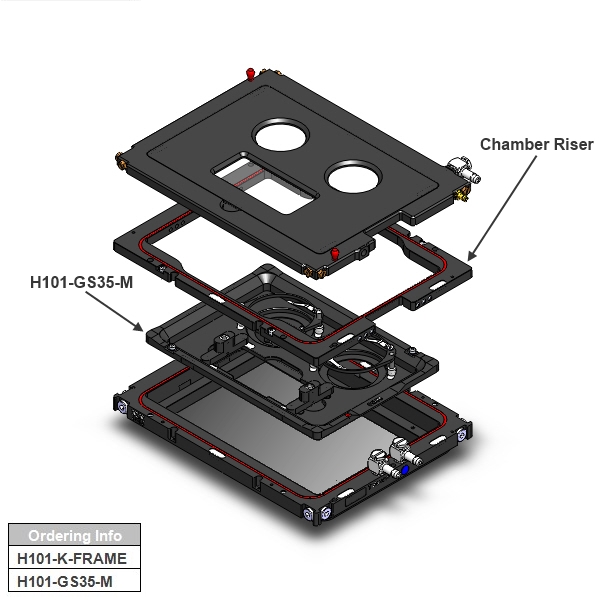

H101-GS35-M	#1 1x3in. chamberslide and #2 35mm Petri-dish
H101-LABTEK-35-M	#1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish
H101-LABTEK-II-35-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish
H101-LABTEK-60-M	#1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish
H101-LABTEK-II-60-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish
H101-GS60-M	#1 1x3in. chamberslide and #1 60mm Petri-dish
H101-6035-M	#1 60mm Petri-dish and #1 35mm Petri-dish
