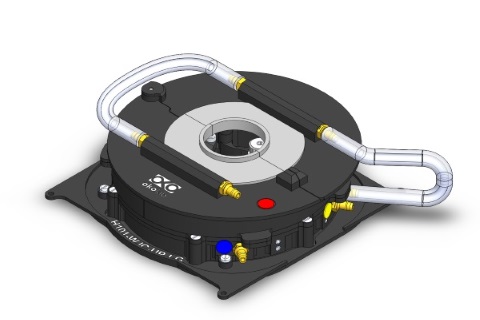

H101-WJC-LG-UP

Stage compatibility: in the Super Z galvo stage (SP5/SP8), by replacing the Leica specimen holder

Features:
  • The chamber hosts #1 35mm petri or #1 chamber slide
  • Chamber uniformly heated by means water circulation in water tight channels present in the main body and in the lid.
  • Total weight on galvo stage: 139 g
  • The chamber hosts #1 35mm Petri Dish
  • Perfusion holes: 4 channels for 2.0 mm O.D. tubings are available for perfusion




Available Drawings

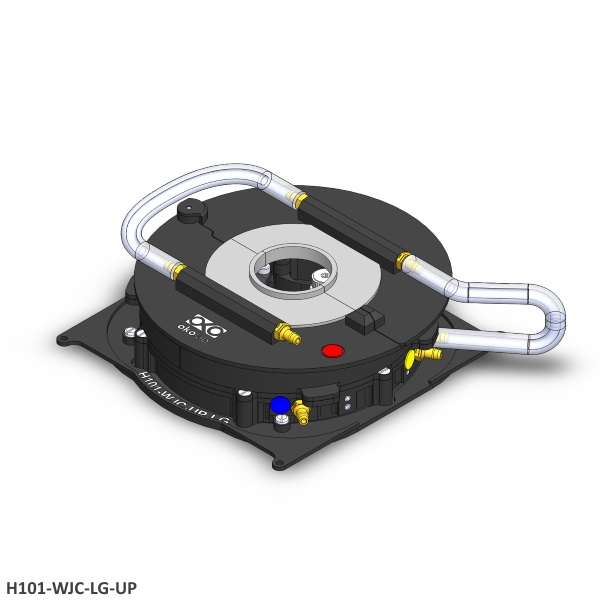

H101-WJC-LG-UP - 3D View

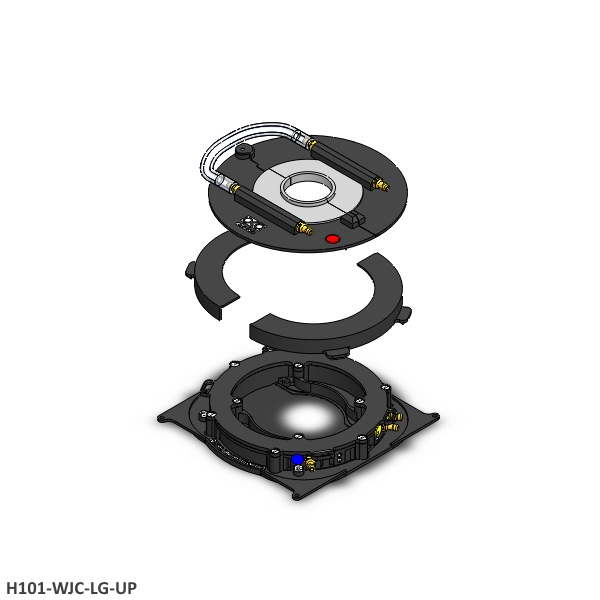

H101-WJC-LG-UP - Components

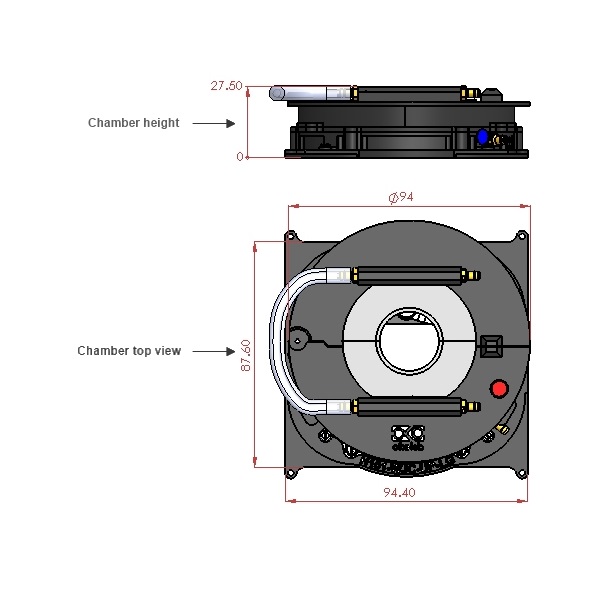

H101-WJC-LG-UP - Dimensions
