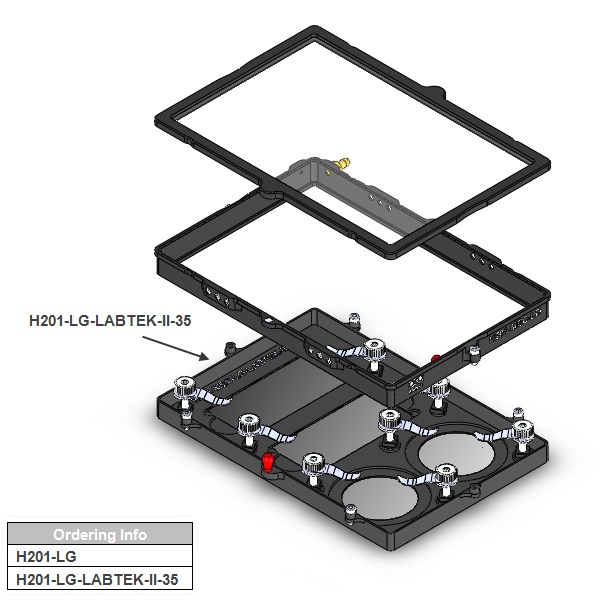

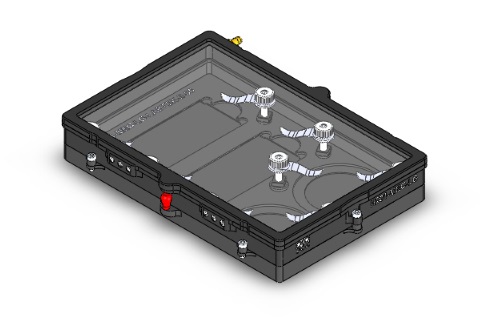

H201-LG
Stage compatibility: fits on the Leica Super Z galvo Stage (SP5/PS8)
The chamber can fit:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- 6-12-24-48-96 MW plates. One MW lock is required to hold the MW plate in the chamber
- Total weight on galvo stage: 100 g with standard inserts
- Total weight on galvo stage: 20 g with Multiwell insert
- Perfusion holes: 12 channels for 2.5mm O.D. tubings are available for perfusion
- The chamber fits on the XY stage and covers the Super Z galvo stage (SP5/SP8)

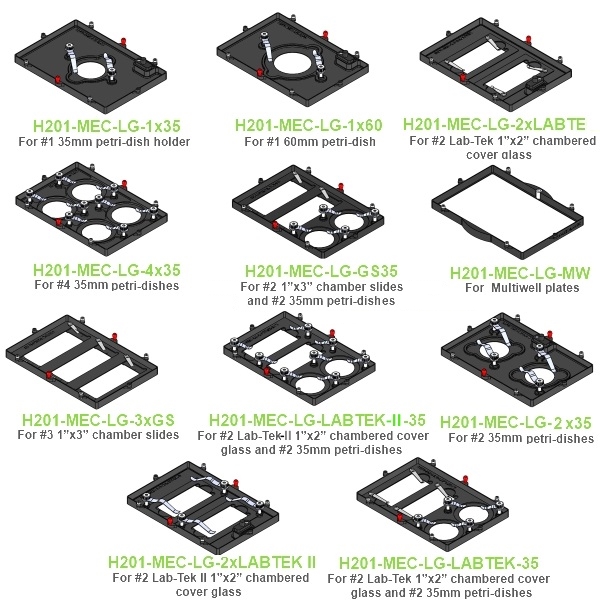

Available Inserts

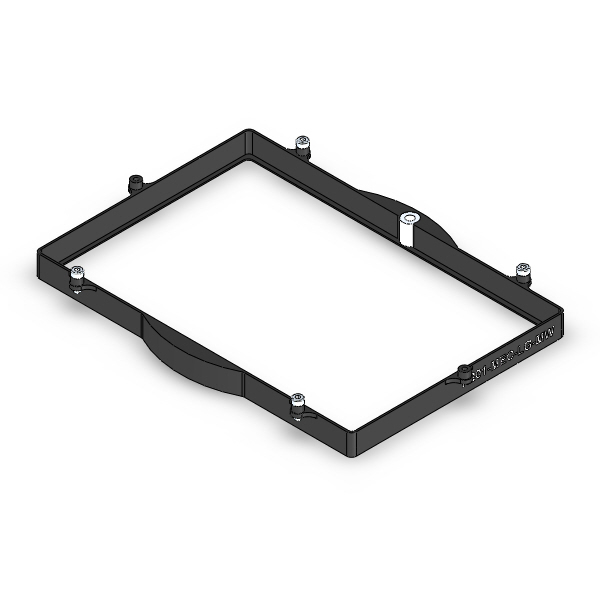

| H201-MEC-LG-MW | Multiwell plates holder |   |

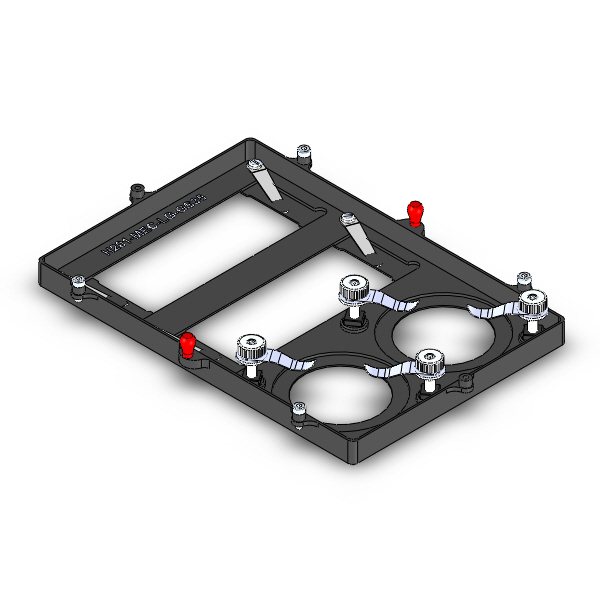

| H201-MEC-LG-GS35 | #2 1”x3” chamber slides and #2 35mm Petri-dish holder |  |

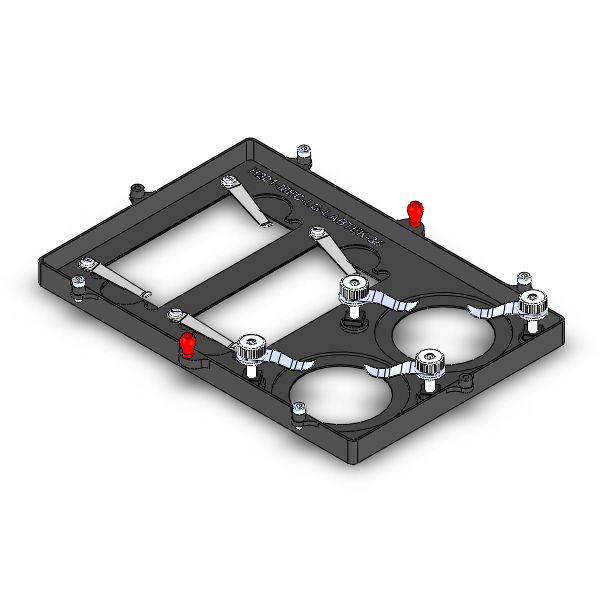

| H201-MEC-LG-LABTEK-35 | #2 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |

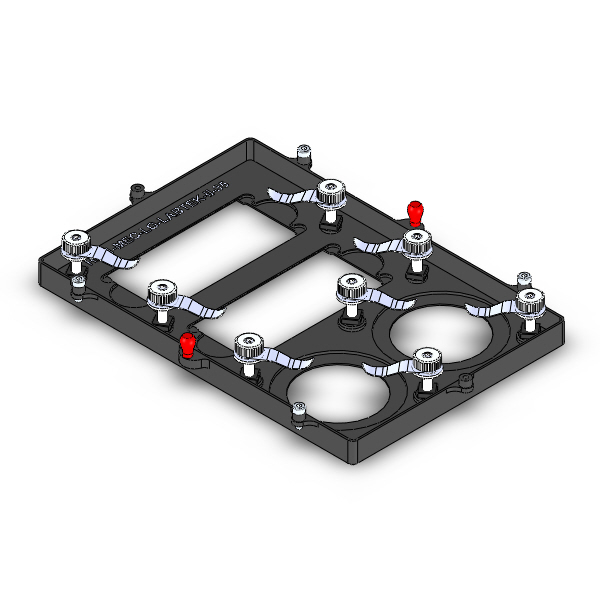

| H201-MEC-LG-LABTEK-II-35 | #2 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |

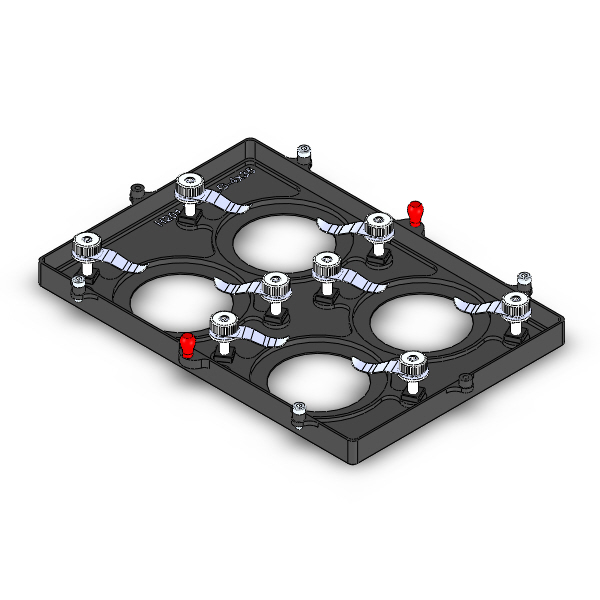

| H201-MEC-LG-4x35 | #4 35mm Petri-dish |  |

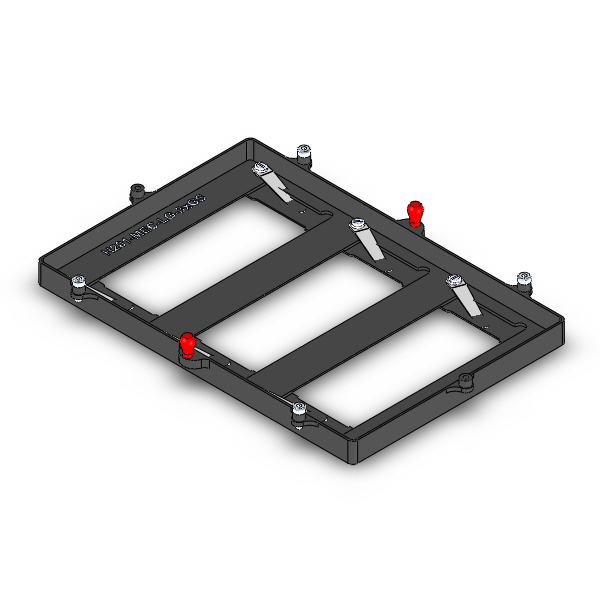

| H201-MEC-LG-3xGS | #3 1x3 in. chamber slides |  |

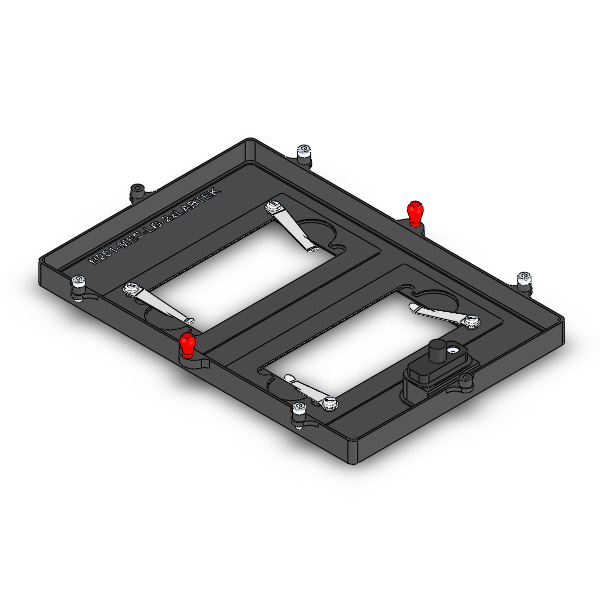

| H201-MEC-LG-2xLABTEK | #2 1x2 in. chambered cover glass |  |

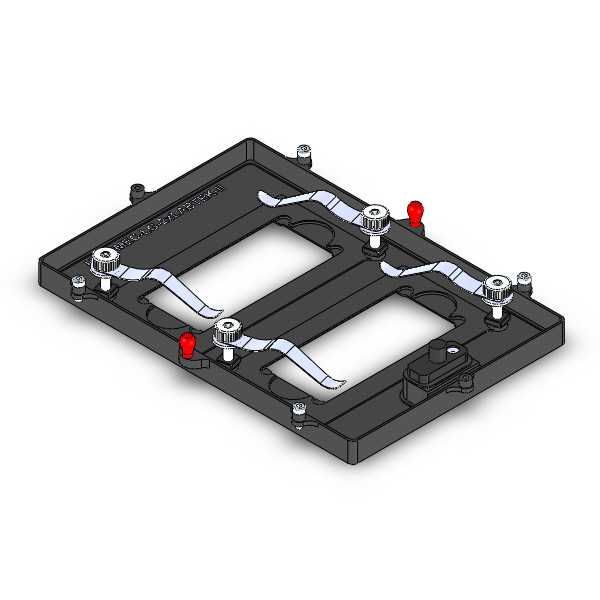

| H201-MEC-LG-2xLABTEK II | #2 Lab-Tek II 1x2 in. chambered cover glass |  |

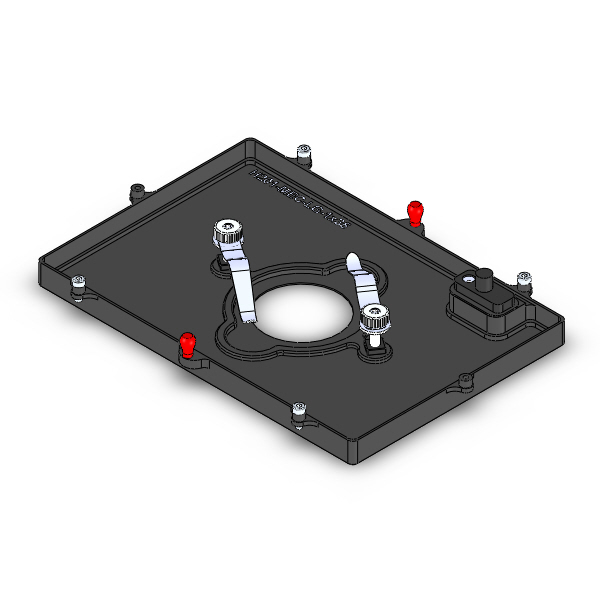

| H201-MEC-LG-1x35 | #1 35mm Petri-dish |  |

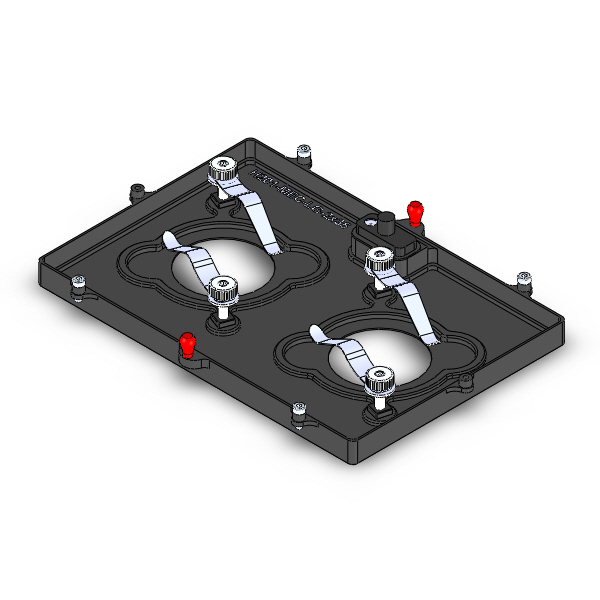

| H201-MEC-LG-2x35 | #2 35mm Petri-dish |  |

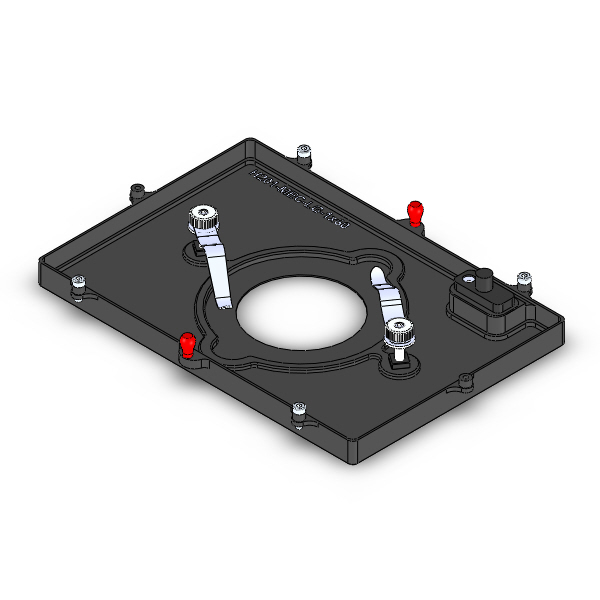

| H201-MEC-LG-1x60 | #1 60mm Petri-dish |  |

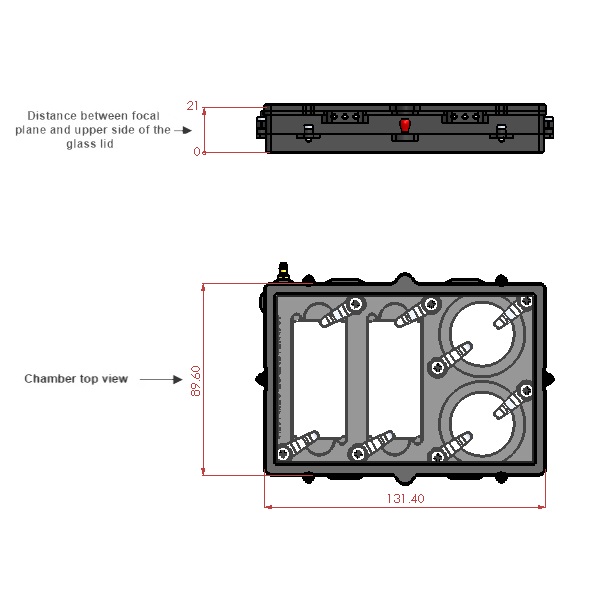

Available Drawings
