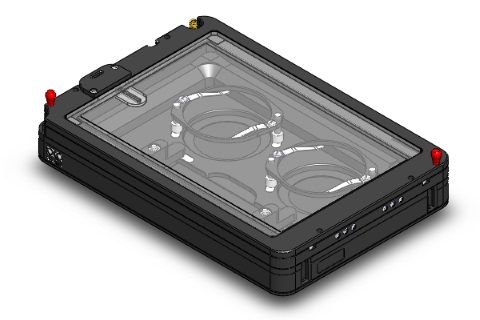

Okolab - H301-LUDL-96A602

Stage Compatibility: fits in the Ludl Piezo Stage 96A602 - comes with Koehler Lid

Magnetic inserts allow to use:

Features:

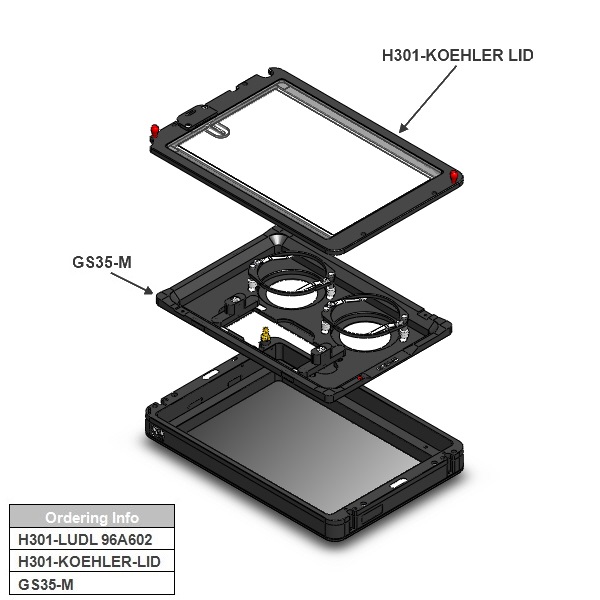

Koelher Lid for Koelher Illumination - included
12 perfusion holes available for 2.5 mm O.D. tubing
Magnets allow easy interchange of chamber inserts

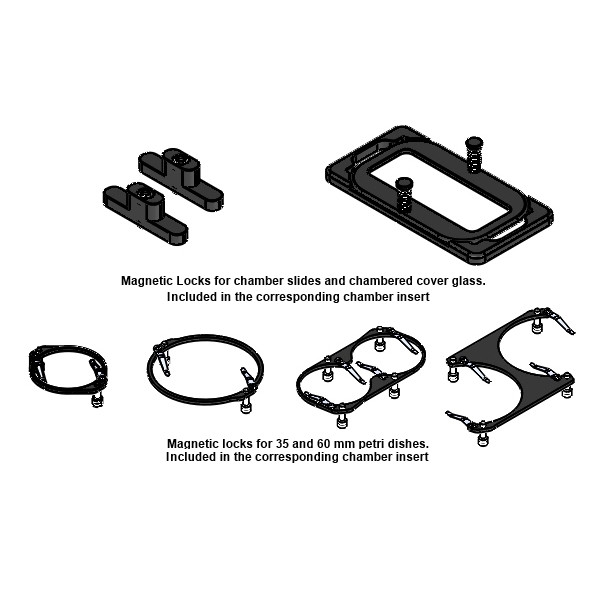

Magnetic locks hold Petri and Slides and MW in correct position inside the chamber

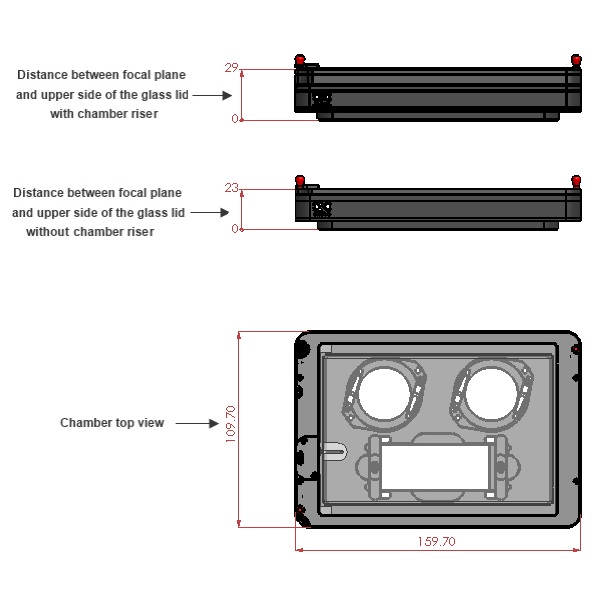

Chamber riser allows to increase the height to hows MW plates
Not compatible with Sliding Lid

Available Inserts

6MW	6 well plates
12MW	12 well plates
24MW	24 well plates
24MW-NUNC	24-well NUNC/GREINER plates
48MW	48-well plates
96MW	96-well plates. Includes MW-OIL
MW-OIL	Open frame to image multi well plates with oil immersion objectives
1x35-M	#1 35mm Petri-dish
1xGS-M	#1 1x3in. chamberslide
1xLABTEK-M	#1 Lab-Tek 1x2 in. chambered cover glass
1xLABTEK-II-M	#1 Lab-Tek II 1x2 in. chambered cover glass
1x60-M	#1 60mm Petri-dish
1xT25-M	#1 Nunc and Greiner T25 flask
2x35-M	#2 35mm Petri-dish
2xGS-M	#2 1x3in. chamberslides
2xLABTEK-M	#2 Lab-Tek 1x2 in. chambered cover glass
2xLABTEK-II-M	#2 Lab-Tek II 1x2 in. chambered cover glass
2x60-M	#2 60mm Petri-dish
4x35-M	#4 35mm Petri-dish
GS35-M	#1 1x3in. chamberslide and #2 35mm Petri-dish
LABTEK-35-M	#1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish
LABTEK-II-35-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish
LABTEK-60-M	#1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish
LABTEK-II-60-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish
GS60-M	#1 1x3in. chamberslide and #1 60mm Petri-dish
6035-M	#1 60mm Petri-dish and #1 35mm Petri-dish

Available LIDs

H301-KOEHLER LID	Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm

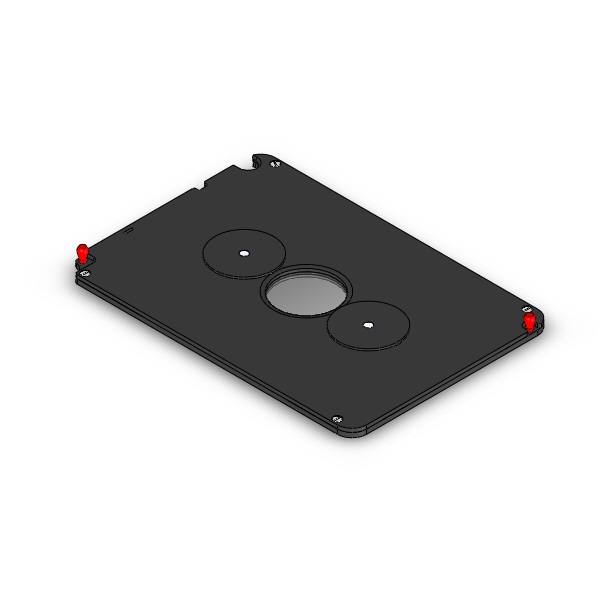

H301-INJECTION-LID	Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35

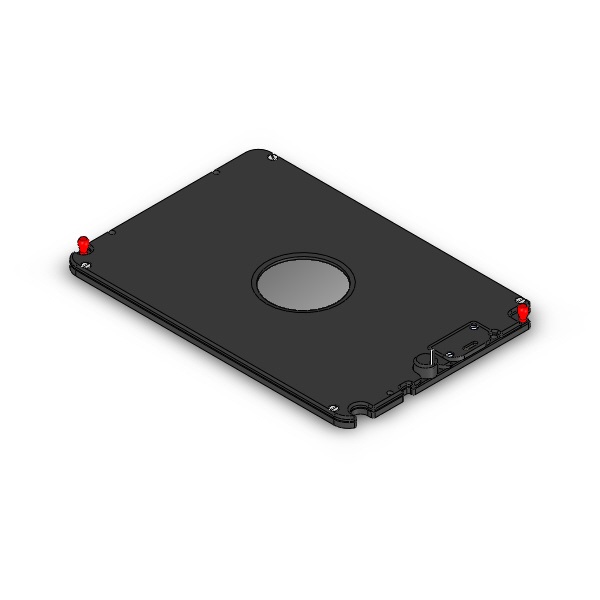

H301-LASER-INTERLOCK-LID	Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35
