H301-EC-LG-UP-BL
Stage compatibility: fits on Leica Super Z Galvo Stage (SP5/SP8) on Upright Microscopes
- Part number of the objectives in use must be specified in purchase order
The chamber can fit:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- Suitable for dipping lens
- Manageable chamber thanks to the opening of the lid to introduce the objective
- Magnets allow easy interchange chamber insert
- Magnetic locks hold Petri, Slides in correct position inside the chamber
- Perfusion holes: 12 channels for 2.0 mm O.D. tubings are available
- The chamber screws onto galvo Stage
- Chamber weight, 130 g.
- To control the humidity into the chamber humidity module is recommended: HM-ACTIVE
Available Inserts

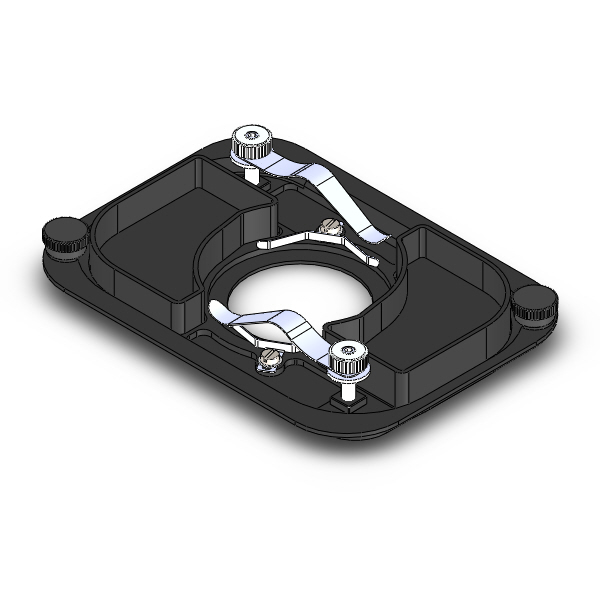

| H301-EC-LG-UP-1x35 | #1 35mm Petri-dish |   |

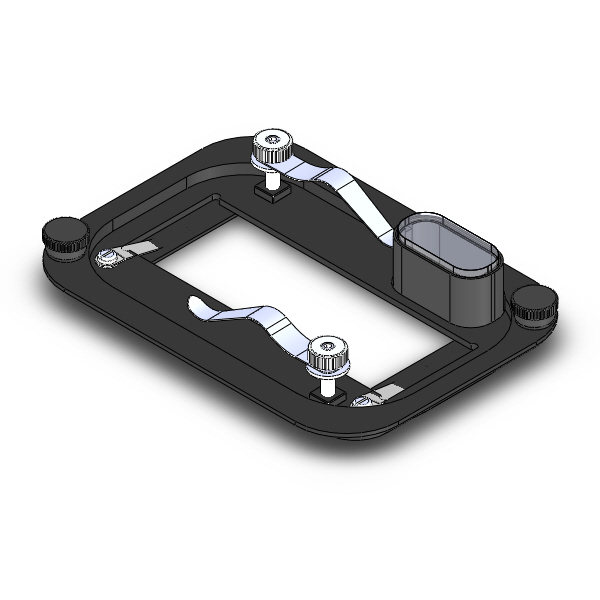

| H301-EC-LG-UP-1xGS | #1 1x3 in. chamber slide |  |
| H301-EC-LG-UP-1xLABTEK | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| H301-EC-LG-UP-1xLABTEK II | #1 Lab-Tek II 1x2 in. chambered cover glass | |

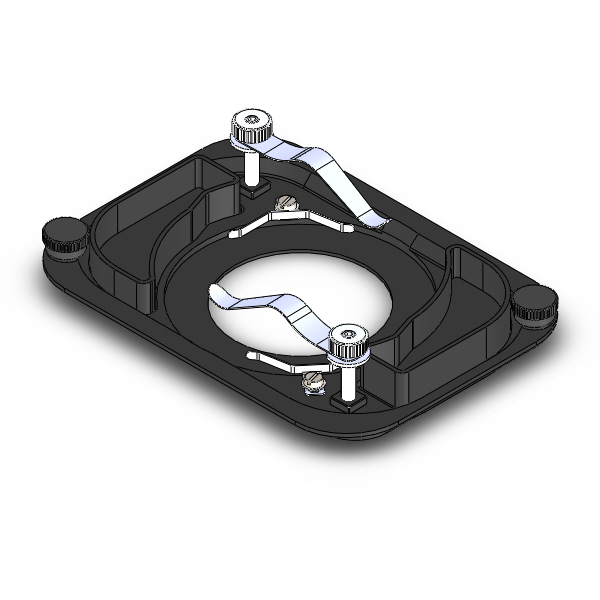

| H301-EC-LG-UP-1x60 | #1 60mm Petri-dish |  |

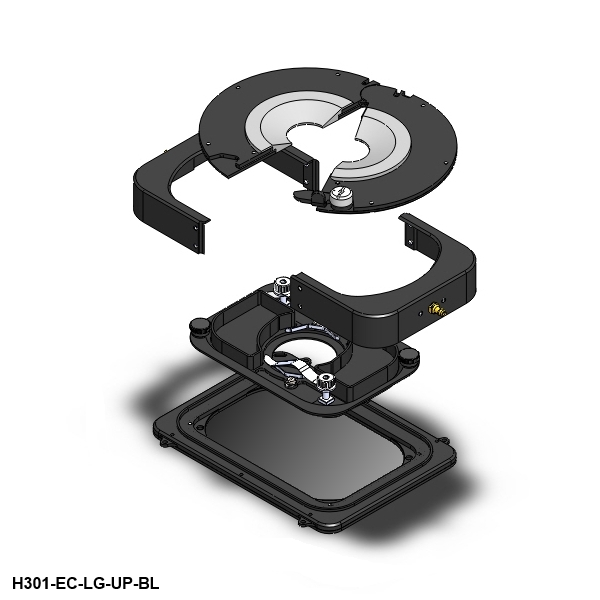

![H301-LG-UP-BL-[Exploded-OPEN]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_ec_lg_up_bl/H301-LG-UP-BL-%5BExploded-OPEN%5D_600x600.jpg)

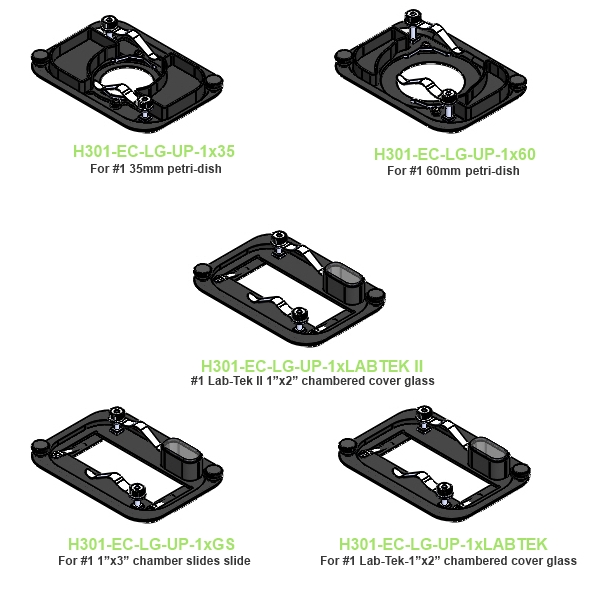

![H301-LG-UP-BL-[ADAPTERS-1]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_ec_lg_up_bl/H301-LG-UP-BL-%5BADAPTERS-1%5D_600x600.jpg)

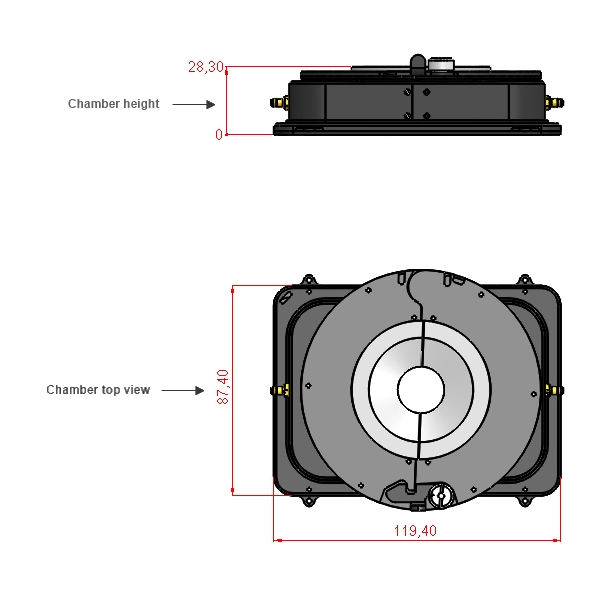

![H301-LG-UP-BL-[LID-STANDARD]-[DIMENSIONS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_ec_lg_up_bl/H301-LG-UP-BL-%5BLID-STANDARD%5D-%5BDIMENSIONS%5D_600x600.jpg)
