UNO-T-H-CO2
UNO STAGE TOP INCUBATOR ensures the highest temperature accuracy on sample temperature by controlling simultaneously up to 6 independent channels with a modern multichannel controller.
The name "UNO" reflects the simplicity of the system, which allows temperature, humidity and CO2 conditioning in a very user friendly manner.
The controller is equipped with an on-board memory for data logging and a mini-USB port for data download.
UNO-T-H-CO2 is an all-in-one stage top incubator's controller with 100% CO2/Air mixer, for application with 100% CO2 and background Air, that includes:
- Uno Stage Top Controller
- Humidity module
- CO2/Air gas mixer
- Air Pump
- Temperature Range: 25 to 60 °C.
- Temperature Accuracy:
- ±0.1°C in sample feedback mode
- ±0.3°C in camber feedback mode, if room T remains within
- Pre-mixed gas flow rate can be regulated manually in the range 0.2-0.8 l/min
- 4.3'' touch screen interface
- On-board memory for data logging and mini-USB port for data download
- Chambers available for any XY stage / piezo insert with Embedded temperature sensor in heated glass lid and in chamber body
- Interchangeable magnetic inserts allow to host Petri, Slides and MW Plates
- Magnetic locks hold the Petri, the Slides and the MW Plates in the correct position inside the chamber
- Compatible with:
- OBJ-COLLAR series, recommended for immersion objectives
- Okolab DATALOG to access Data Logging / Remote Operation on pc

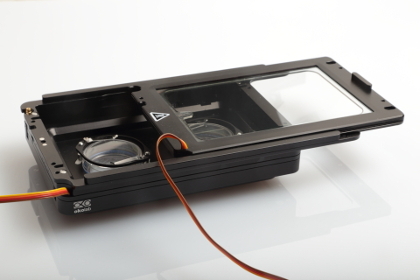

Compatible with any H301 Chamber
Chambers available for any XY stage / piezo insert with Embedded temperature sensor in heated glass lid and in chamber body
Humidity module
UNO STAGE TOP INCUBATOR employs a powerful humidifier to ensure 90% ca. of relative humidity inside the stage top incubator
UNO-T-H-PREMIXED requires pre-mixed gas
UNO-T-H-CO2 provides gas mixer
OBJ-COLLAR Series
Collars fit any objective on the market
Compatible with Inverted and Upright Microscopes
Chambers available for any XY stage / piezo insert
| Manufacturer | Model or stage opening | Climate Chamber | Fixing tool | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Applied Precision | 51-603288-000 Deltavision Stage | H301-K-FRAME | DV-PA | ||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
| Mad City Labs | Z100/Z500 Piezo stages | H301-MCL-Z100/500 | - | ||||||||||||||||||||
| Marzhauser | Scan IM series (110x160mm opening) | H301-K-FRAME | - | ||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
| Thorlabs | Thorlabs MLS203-1 /MLS203-2 | H301-K-FRAME | THORPA | ||||||||||||||||||||
|
|||||||||||||||||||||||
| Upright Microscopes | any stage for uprightmicroscopes | H301-UP | - | ||||||||||||||||||||
