H301-DUAL-GAS
Stage compatibility: any stage with 110x160mm insert
The chamber can fit:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- The chamber features two gas compartments each one with a dedicated gas inlet.
- O-rings ensure no gas exchange between the two gas compartments.
- The chamber is uniformly heated by means of embedded electric resistances and is covered with a temperature controlled conductive glass lid.
- Magnets allow easy interchange of specimen holders.
Available Inserts

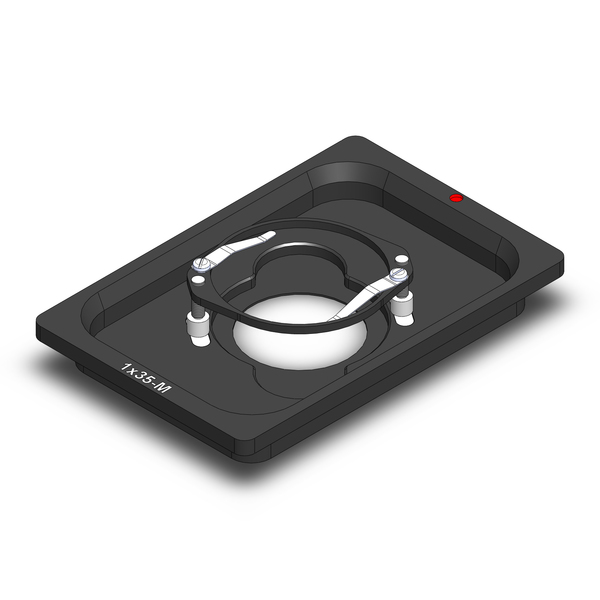

| DUAL-GAS-1x35-M | #1 35mm Petri-dish. Set of two, one per compartment. |   |

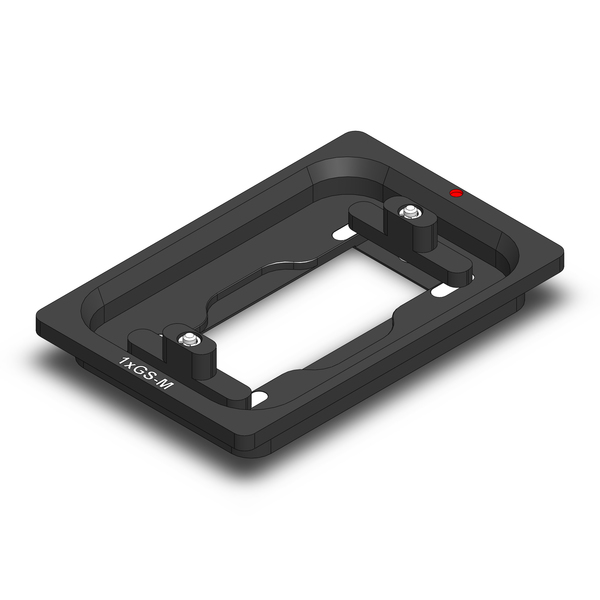

| DUAL-GAS-1xGS-M | #1 1x3in. chamberslide. Set of two, one per compartment. |  |

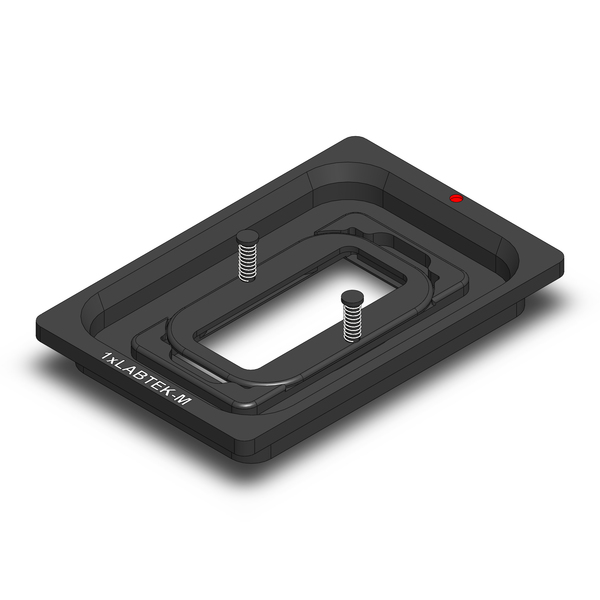

| DUAL-GAS-1xLABTEK-M | #1 Lab-Tek 1”x2” chambered coverglass holder. Set of two, one per compartment. |  |
| DUAL-GAS-1xLABTEK-II-M | #1 Lab-Tek II 1x2 in. chambered coverglass holder. Set of two, one per compartment. |  |

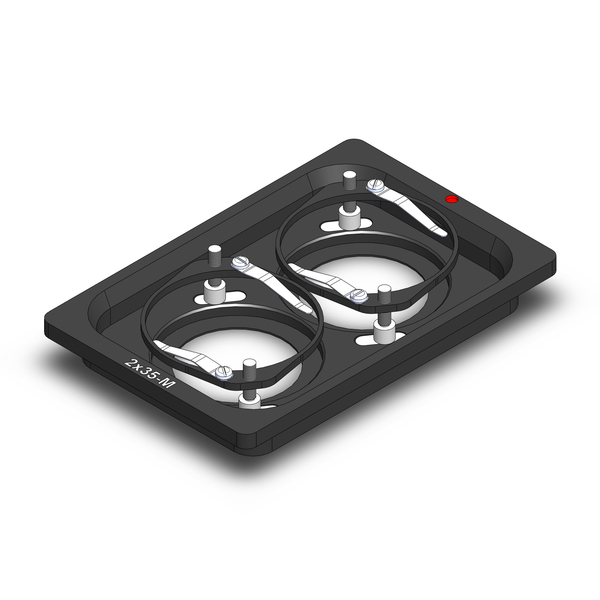

| DUAL-GAS-2x35-M | #2 35mm Petri-dish holder. Set of two, one per compartment. |  |

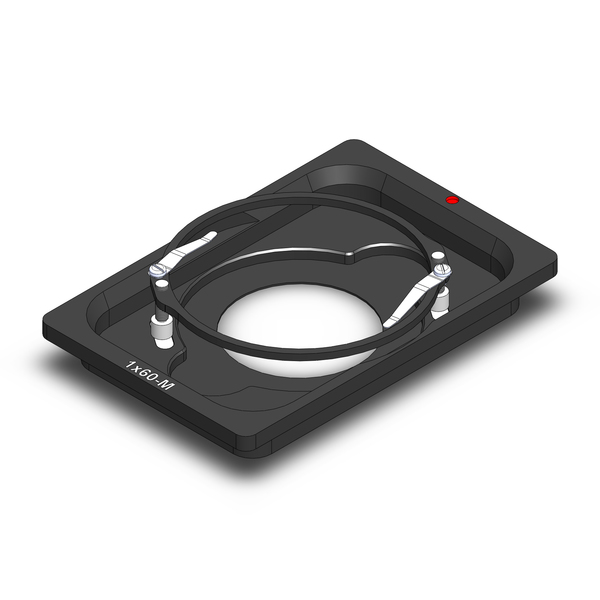

| DUAL-GAS-1x60-M | #1 60 mm Petri-dish holder. Set of two, one per compartment. |  |

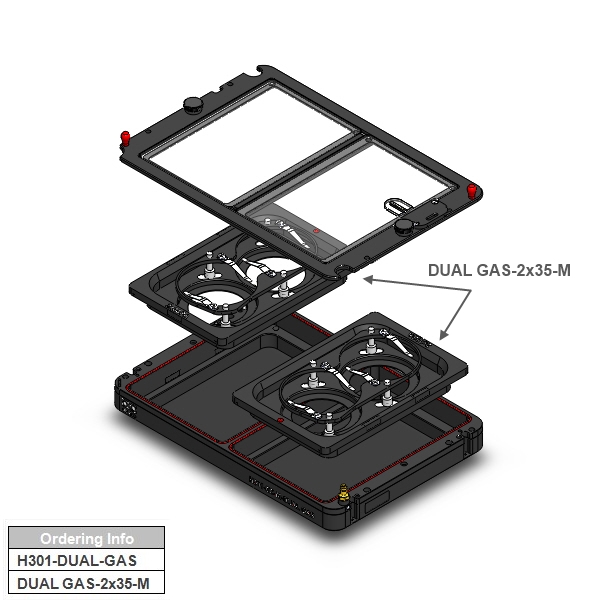

![H301-DUAL-GAS-[Exploded].jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/H301_dual_gas/H301-DUAL-GAS-%5BExploded%5D.jpg)

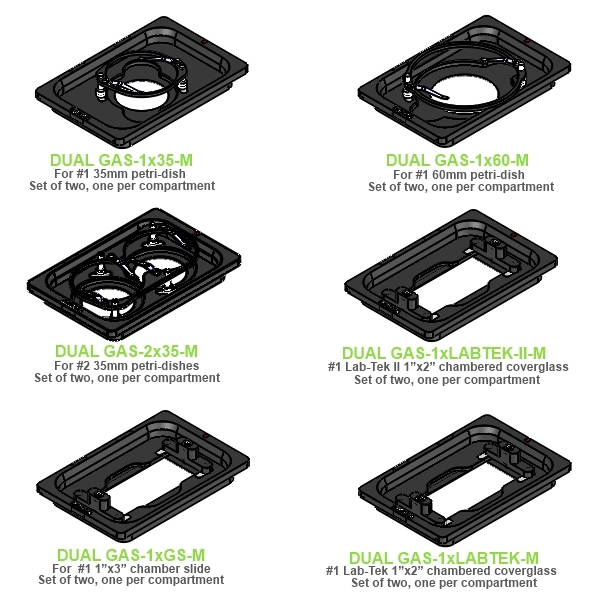

![H301-DUAL-GAS-[ADAPTERS-1].jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/H301_dual_gas/H301-DUAL-GAS-%5BADAPTERS-1%5D.jpg)

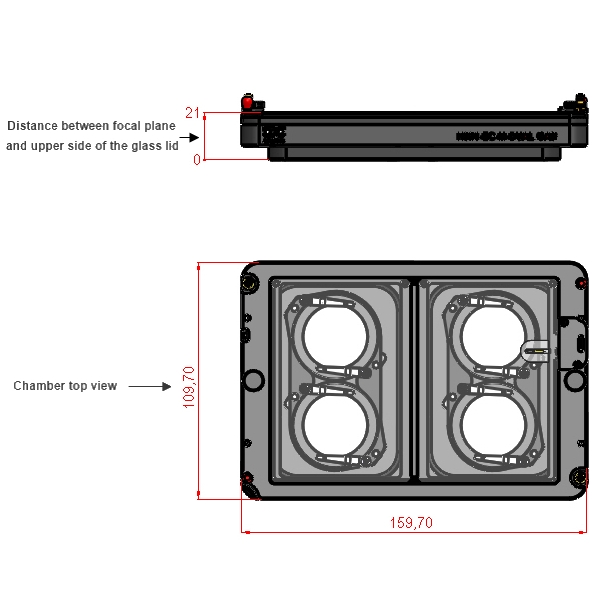

![H301-DUAL-GAS-[DIMENSIONS].jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/H301_dual_gas/H301-DUAL-GAS-%5BDIMENSIONS%5D.jpg)
