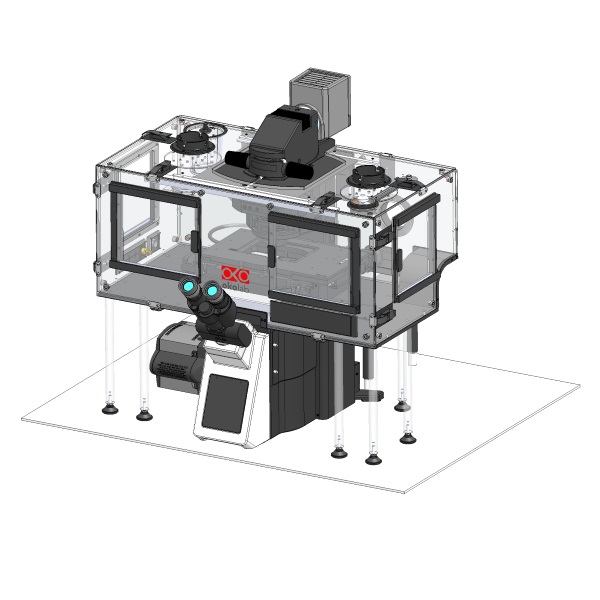

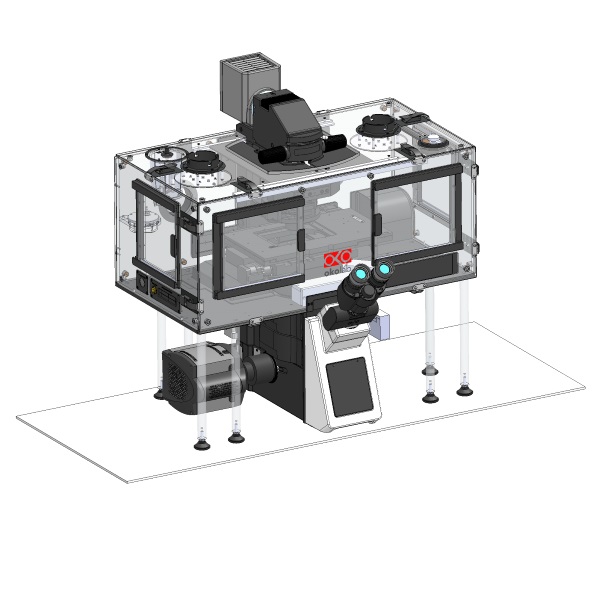

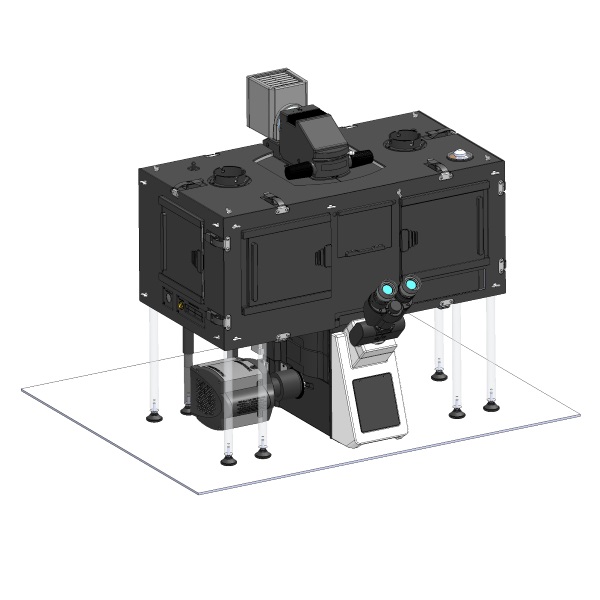

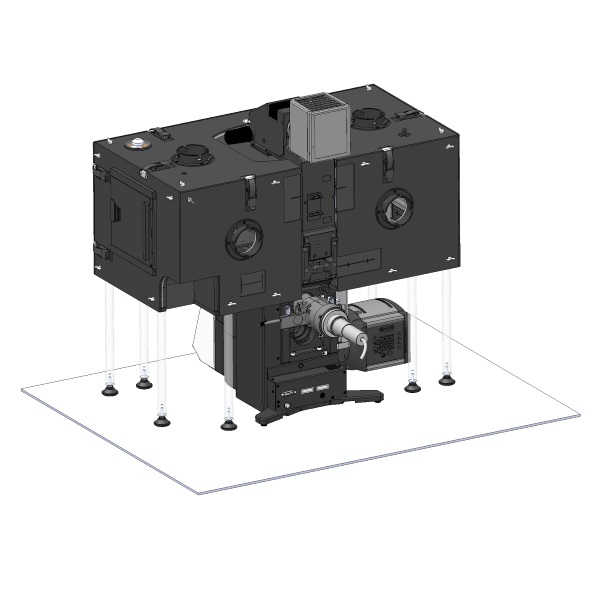

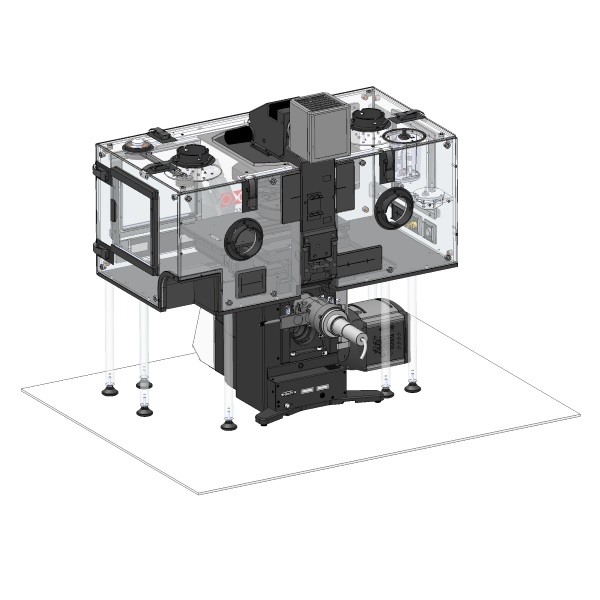

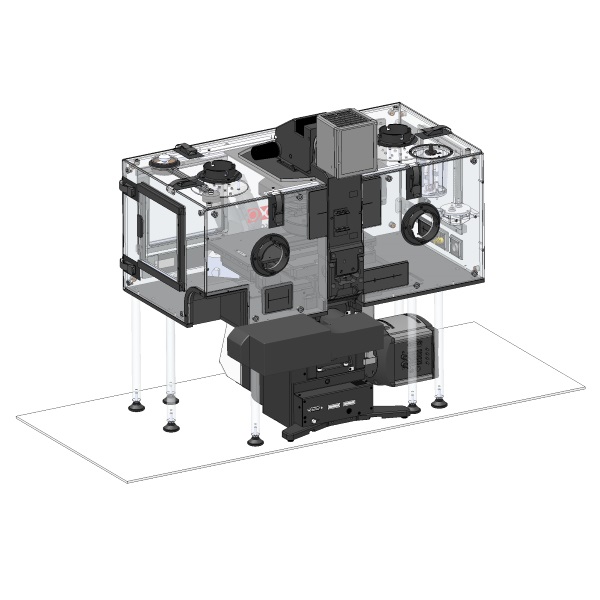

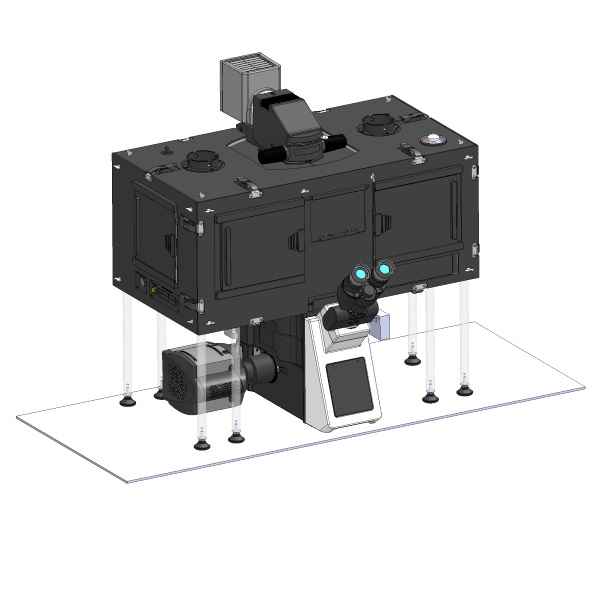

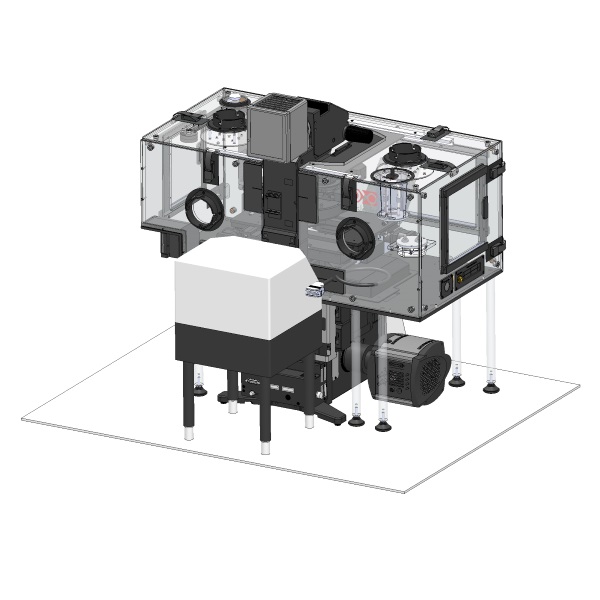

In this page we report drawings of the enclosure for three configurations, based on Olympus microscopes.

	Fluorescence Imaging	FV1200 Laser scanning	Live Cell Imaging
Body	IX83: Two Decks	IX83: Two Decks	IX83: Two Decks
Eyepiece	U-TBi90	U-TBi90	U-TBi90
XY-Stage	Motorized Stage	Motorized Stage	Motorized Stage
Back Port	IX3-RFA Fluorescence Illuminator + Microscope Adapter	Laser Scanning Microscope Confocal FV1200	cellTIRF-1Line System
Left Port	ANDOR-iXon Ultra 888	ANDOR-iXon Ultra 888	ANDOR-iXon Ultra 888
Right Port	IX3-RFA Fluorescence Illuminator + Microscope Adapter	Laser Scanning Microscope Confocal FV1200	cellTIRF-1Line System
Nosepiece	IX3-ZDC	IX3-ZDC	IX3-ZDC
