H201-PI-P-736-ZR1S/ZR2S

Stage compatibility: fits on Physik Instrumente P-736-ZR1S/ZR2S

The chamber can fit:
  • 35 mm Petri
  • 1x3 in. chambered slides
  • No insert is required
Features:
  • The chamber hosts #1 35mm petri or #1 chamber slide
  • Flexible chamber height thanks to the removable chamber riser required to perform perfusion
  • Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in chamber riser




Available Drawings

H201-PI-P-736-ZR1S-ZR2S_600x600 (2).jpg

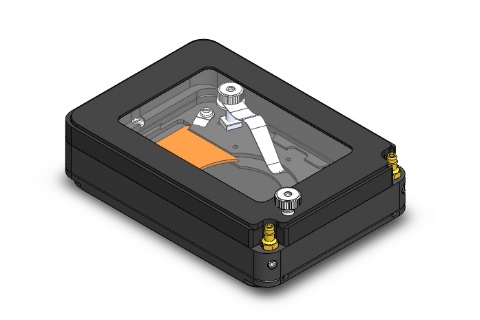

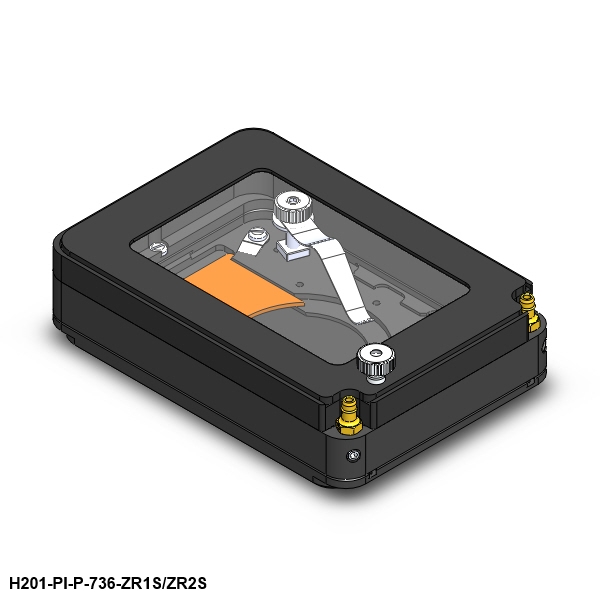

H201-PI-P-736-ZR1S/ZR2S - 3D View

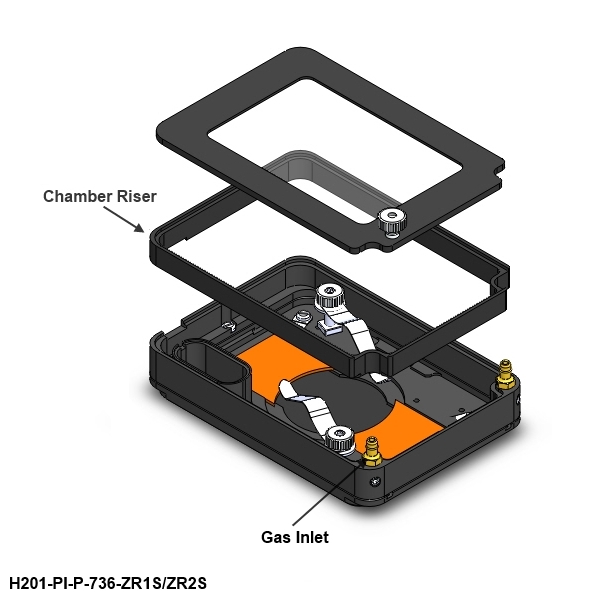

H201-PI-P-736-ZR1S/ZR2S - Components

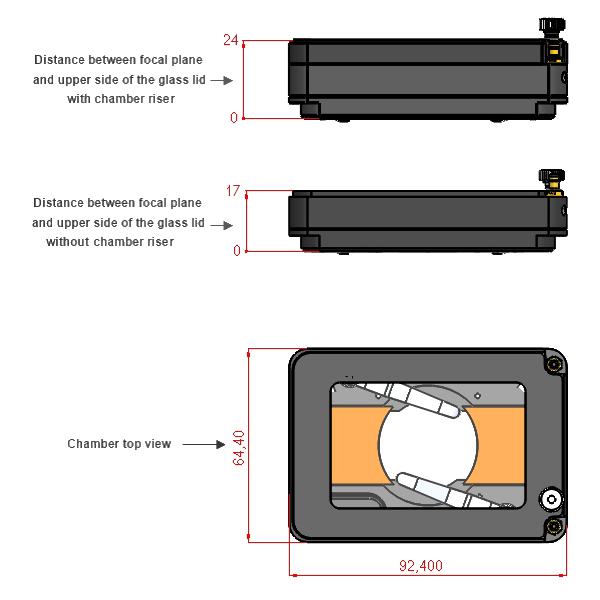

H201-PI-P-736-ZR1S/ZR2S - Dimensions
