Okolab - H201-PRIOR-NZ500

Stage compatibility: screws onto Prior NZ250/400/500 - comes with Koelher lid

Magnetic interchangeable inserts allow to use:

Features:

Koelher lid for working under Koehler illumination
Optional lids available for Laser Safety, Injection during imaging
Flexible chamber height thanks to the removable chamber riser required to fit standard multiwell plates or to perform perfusion
Magnets allow easy interchange of chamber inserts
Magnetic locks hold Petri and Slides and MW in correct position inside the chamber

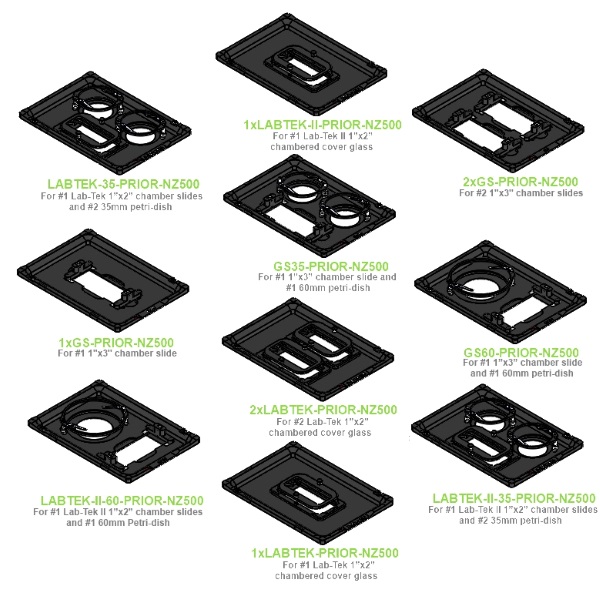

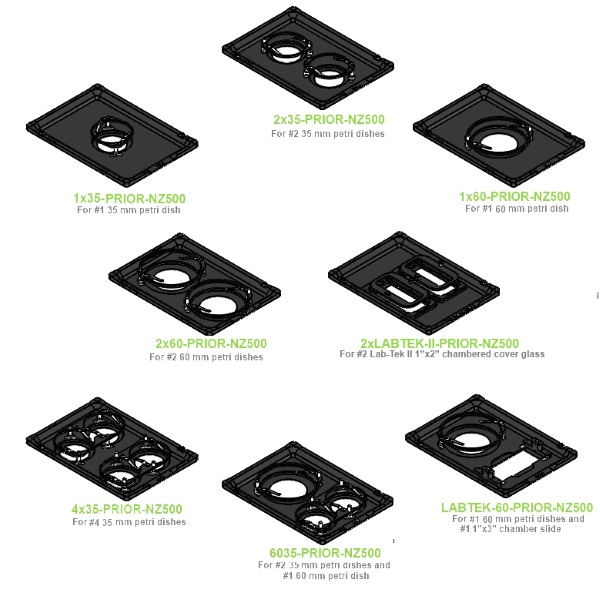

Available Inserts

H201-MW-HOLDER-NZ500	Multiwell plates holder
1x35-M	#1 35mm Petri-dish

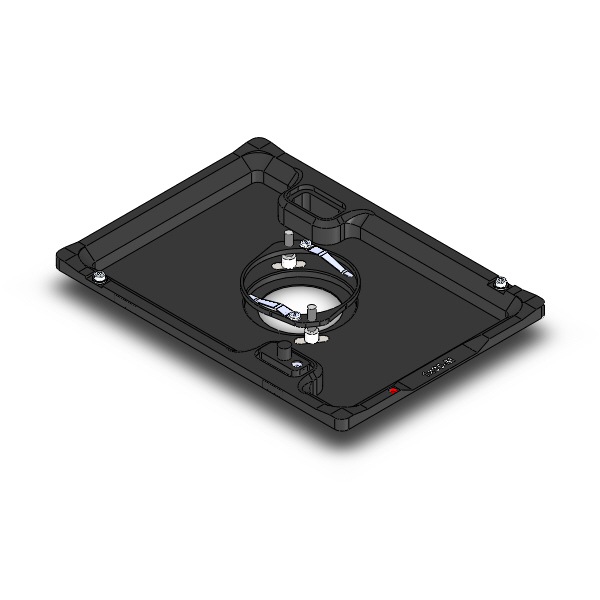

1x35-PRIOR-NZ500	#1 35mm Petri-dish
1xGS-PRIOR-N-NZ500	#1 1x3in. chamberslide

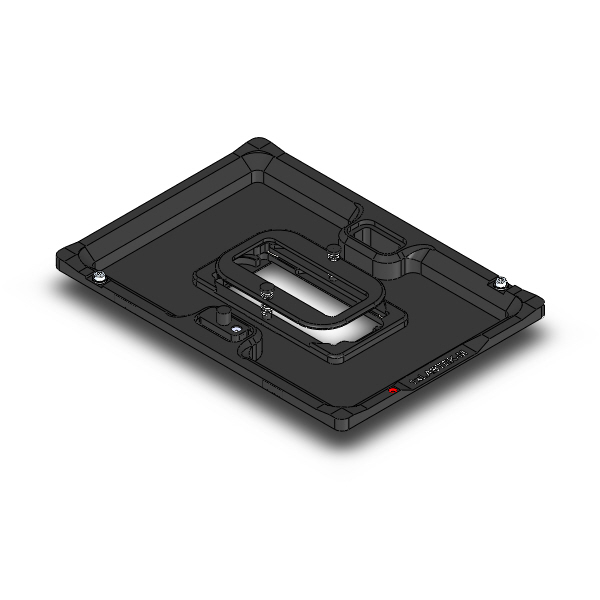

1xLABTEK-PRIOR-NZ500	#1 Lab-Tek 1x2 in. chambered cover glass
1xLABTEK-II-PRIOR-NZ500	#1 Lab-Tek II 1x2 in. chambered cover glass

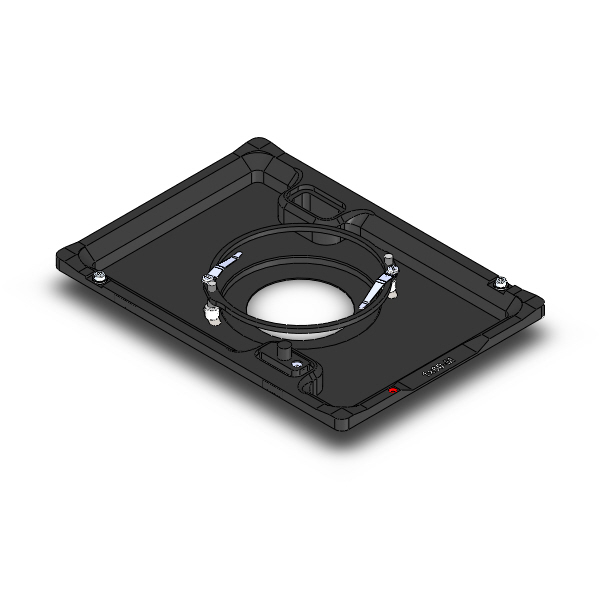

1x60-PRIOR-NZ500	#1 60mm Petri-dish
1xT25-PRIOR-NZ500	#1 Nunc and Greiner T25 flask

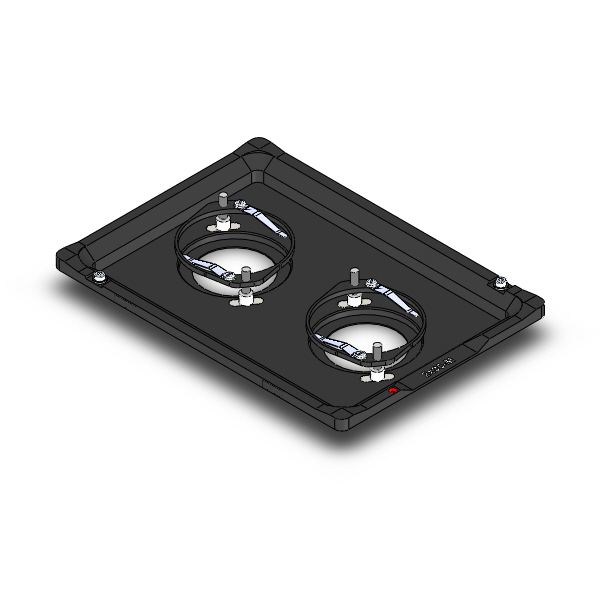

2x35-PRIOR-NZ500	#2 35mm Petri-dish

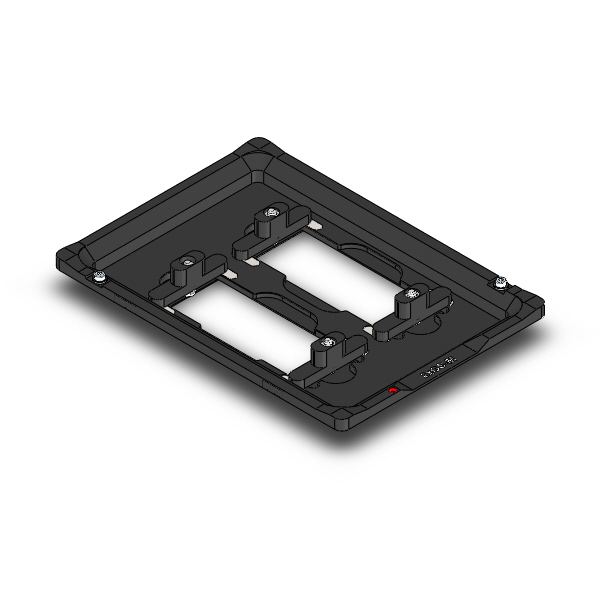

2xGS-PRIOR-NZ500	#2 1x3in. chamberslides

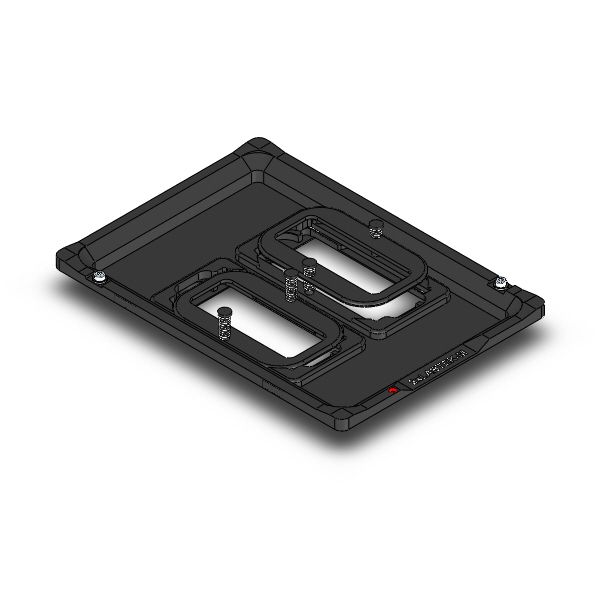

2xLABTEK-PRIOR-NZ500	#2 Lab-Tek 1x2 in. chambered cover glass

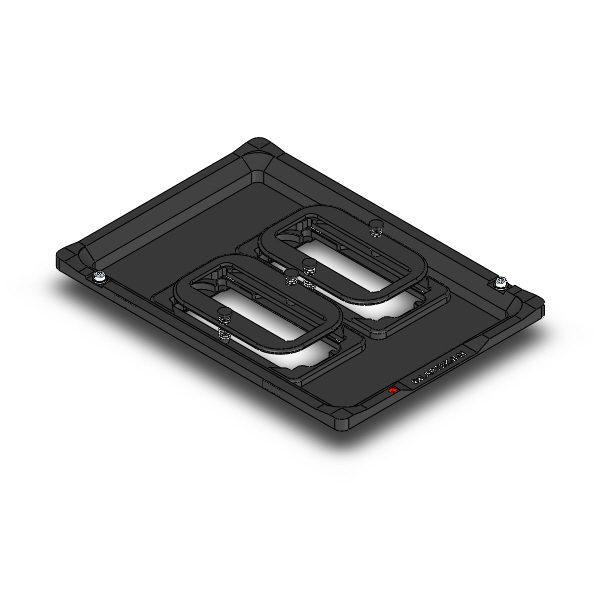

2xLABTEK-II-PRIOR-NZ500	#2 Lab-Tek II 1x2 in. chambered cover glass

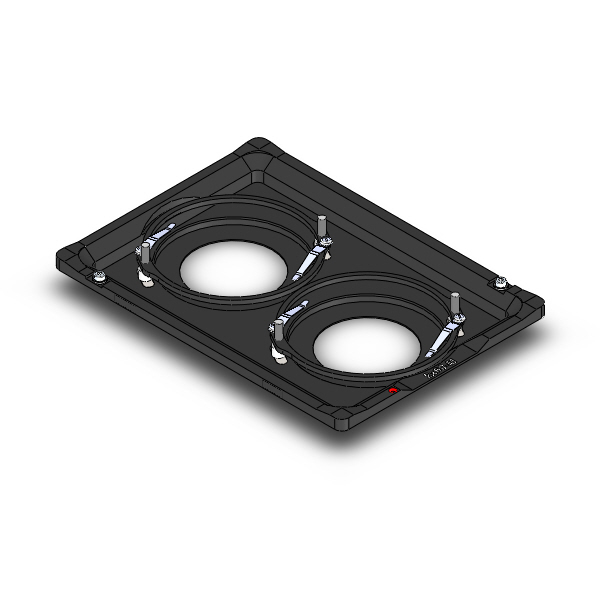

2x60-PRIOR-NZ500	#2 60mm Petri-dish

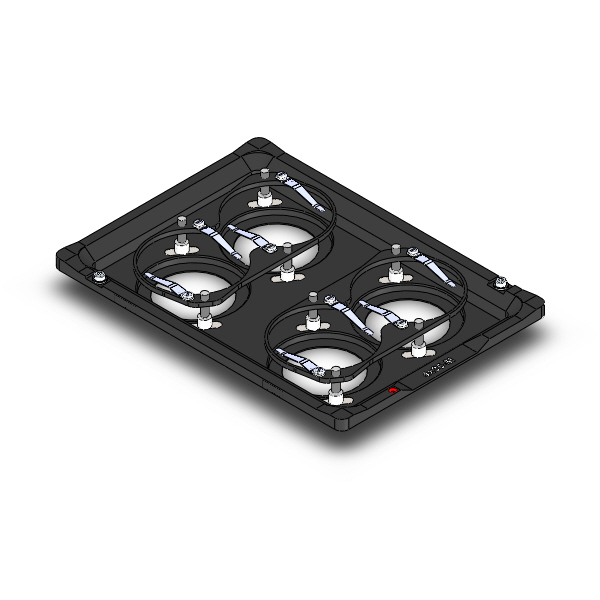

4x35-PRIOR-NZ500	#4 35mm Petri-dish
GS35-PRIOR-NZ500	#1 1x3in. chamberslide and #2 35mm Petri-dish

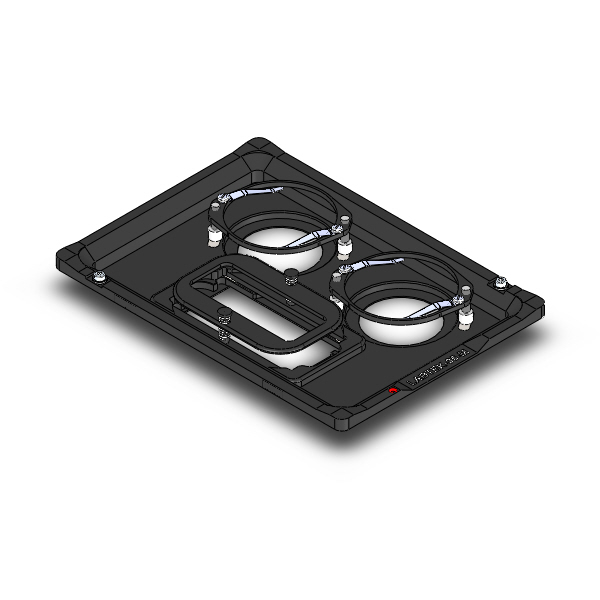

LABTEK-35-PRIOR-NZ500	#1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish

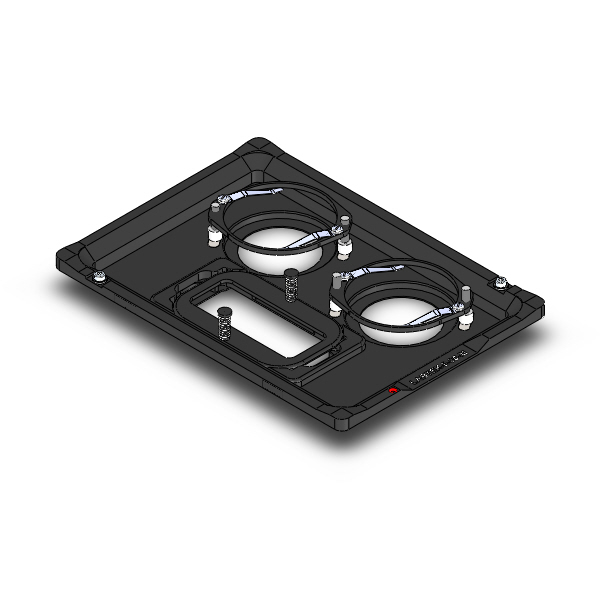

LABTEK-II-35-PRIOR-NZ500	#1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish

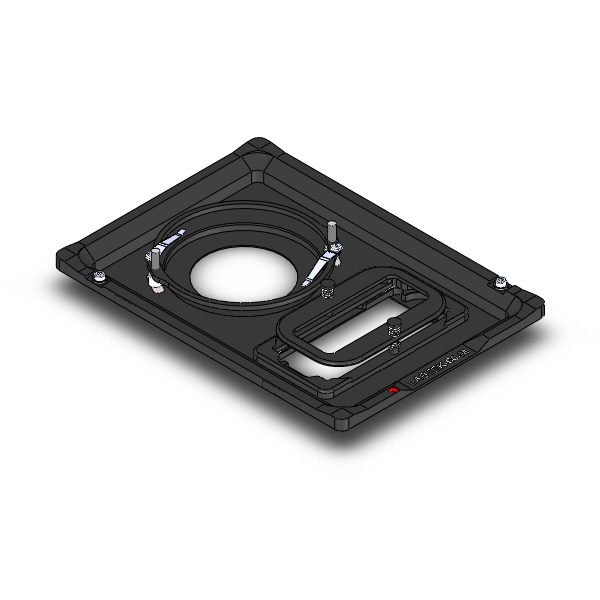

LABTEK-60-PRIOR-NZ500	#1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish

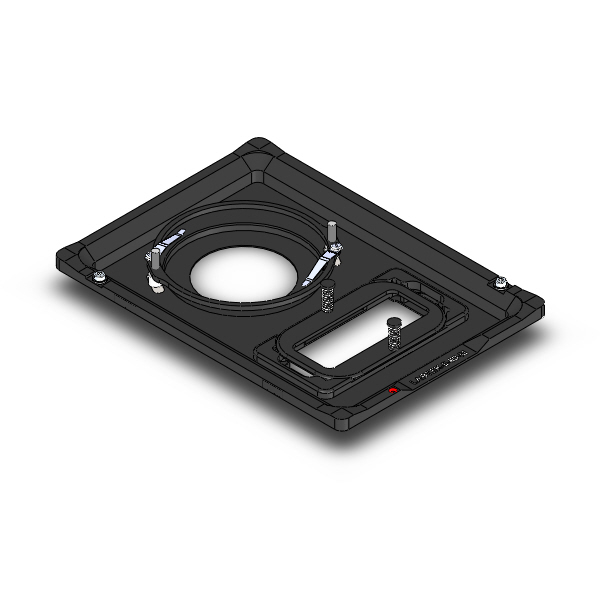

LABTEK-II-60-PRIOR-NZ500	#1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish

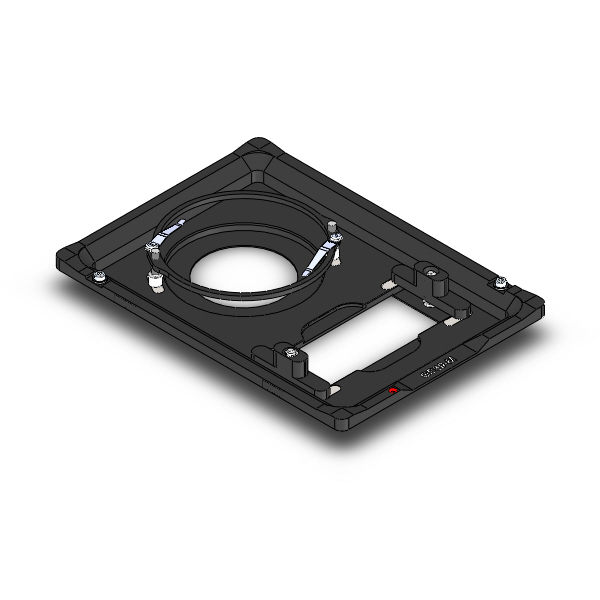

GS60-PRIOR-NZ500	#1 1x3in. chamberslide and #1 60mm Petri-dish

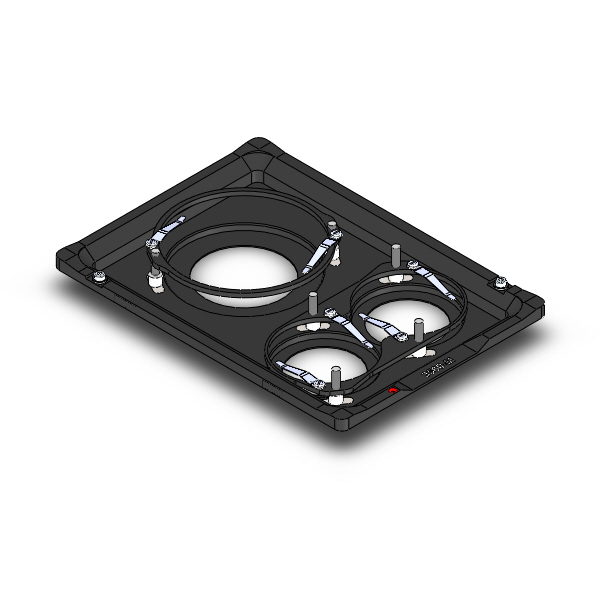

6035-PRIOR-NZ500	#1 60mm Petri-dish and #1 35mm Petri-dish

Available LIDs

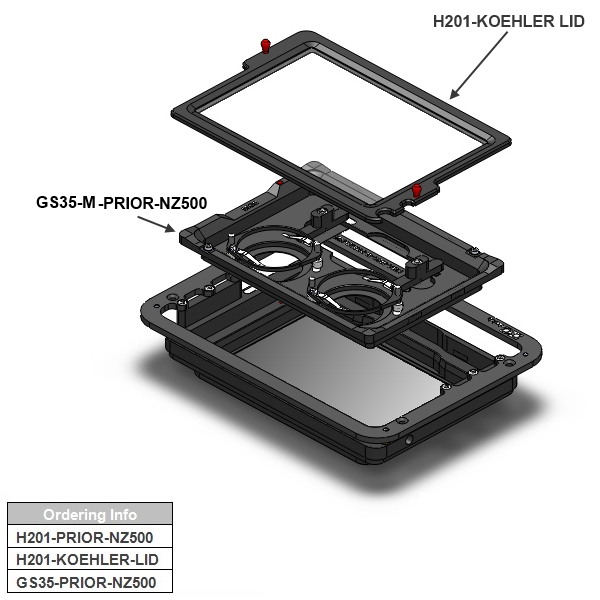

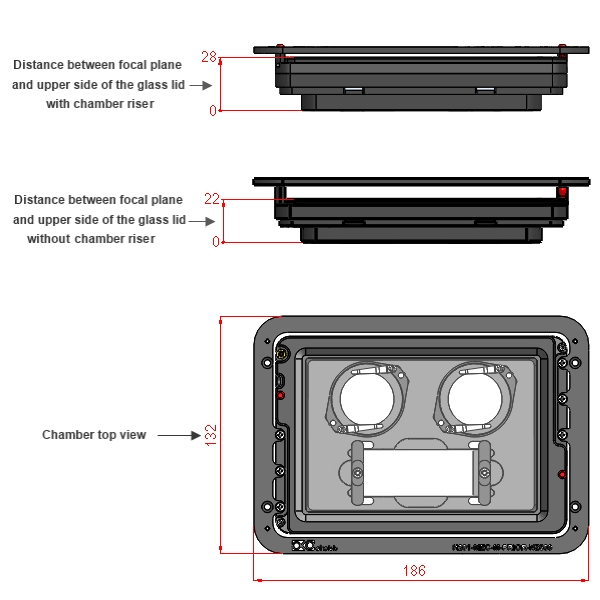

H201-KOEHLER-LID-PRIOR-NZ500	Glass lid that reduces the height of the chamber to 22 mm.It allows to work under Koehler illumination.
H201-INJECTION-LID-PRIOR-NZ500	Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen. Note: compatible only with specimen holder 1x35
H201-LASER-INTERLOCK-LID-PRIOR-NZ500	Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35
