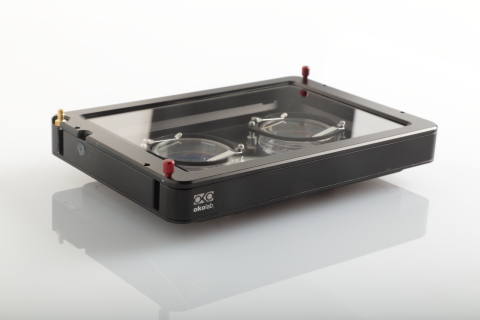

H201-LUDL-96A602
Fits in the Ludl piezo stage 96A602 - comes with Koehler Lid
Magnetic inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- 6-12-24-48-96 MW plates
- Koelher Lid for Koelher Illumination - included
- 12 perfusion holes available for 2.5 mm O.D. tubing
- Chamber riser allows to increase the height to hows MW plates
- Not compatible with Sliding Lid
Available Inserts
| H201-MW-HOLDER | Multiwell plates holder |   |
| 1x35-M | #1 35mm Petri-dish |  |
| 1xGS-M | #1 1x3in. chamberslide |  |
| 1xLABTEK-M | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| 1xLABTEK-II-M | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| 1x60-M | #1 60mm Petri-dish |  |
| 1xT25-M | #1 Nunc and Greiner T25 flask |  |
| 2x35-M | #2 35mm Petri-dish |  |
| 2xGS-M | #2 1x3in. chamberslides |  |
| 2xLABTEK-M | #2 Lab-Tek 1x2 in. chambered cover glass |  |
| 2xLABTEK-II-M | #2 Lab-Tek II 1x2 in. chambered cover glass |  |
| 2x60-M | #2 60mm Petri-dish |  |
| 4x35-M | #4 35mm Petri-dish |  |
| GS35-M | #1 1x3in. chamberslide and #2 35mm Petri-dish |  |
| LABTEK-35-M | #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-II-35-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-60-M | #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| LABTEK-II-60-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| GS60-M | #1 1x3in. chamberslide and #1 60mm Petri-dish |  |
| 6035-M | #1 60mm Petri-dish and #1 35mm Petri-dish |  |

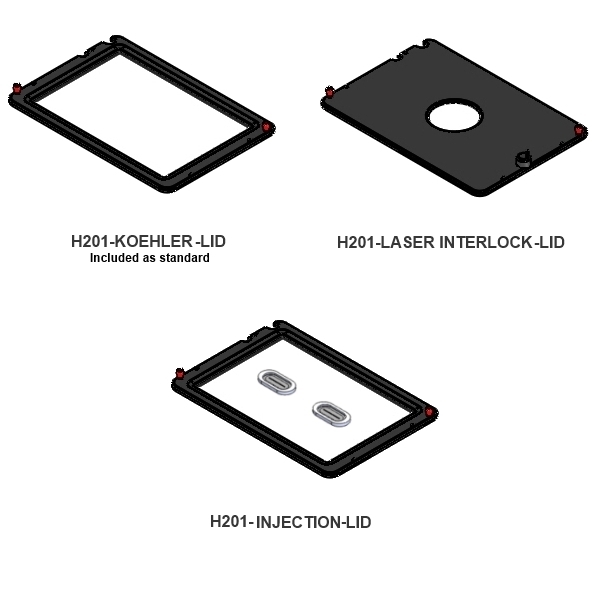

Available LIDs

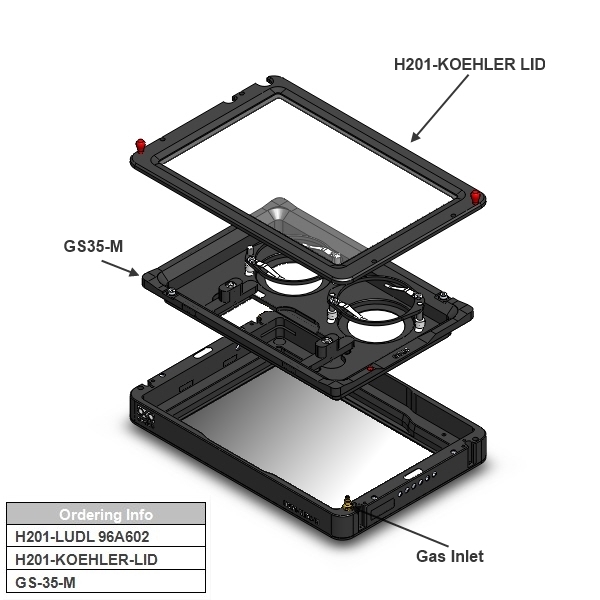

| H201-KOEHLER LID | Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm |  |
| H201-INJECTION-LID | Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 |  |
| H201-LASER-INTERLOCK-LID | Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 |  |
