Okolab - H301-PRIOR-H117

Stage compatibility: PRIOR H117 - comes with Sliding Lid

Magnetic interchangeable inserts allow to use:

Features:

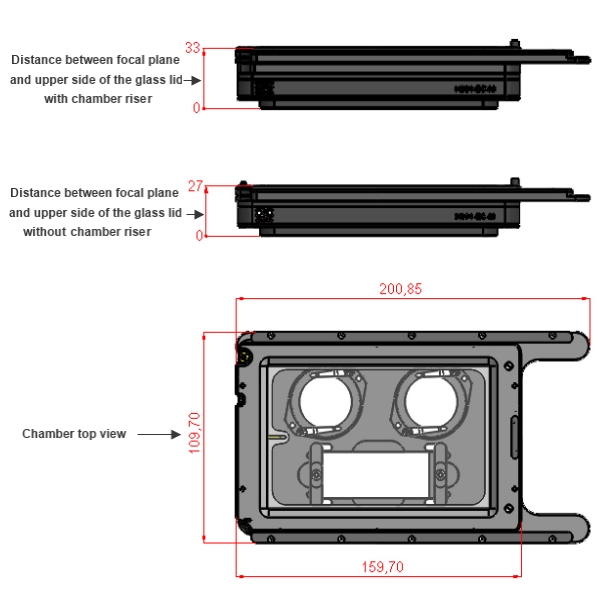

Sliding lid for easy pipetting
Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
Magnets allow easy interchange of chamber inserts
Magnetic locks hold Petri, Slides and MW in correct position inside the chamber

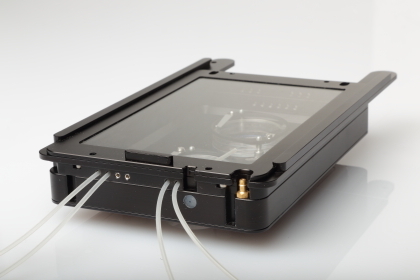

Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser

Remove the chamber riser and use the Koehler Lid

Each chamber features up to 12 holes for inlet and outler of perfusion tubings

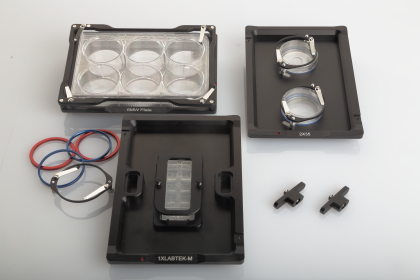

Change the chamber insert. It is a 5 seconds task with the magnetic sample holders

Keep the sample in the correct position by using the Magnetic Locks

Available Inserts

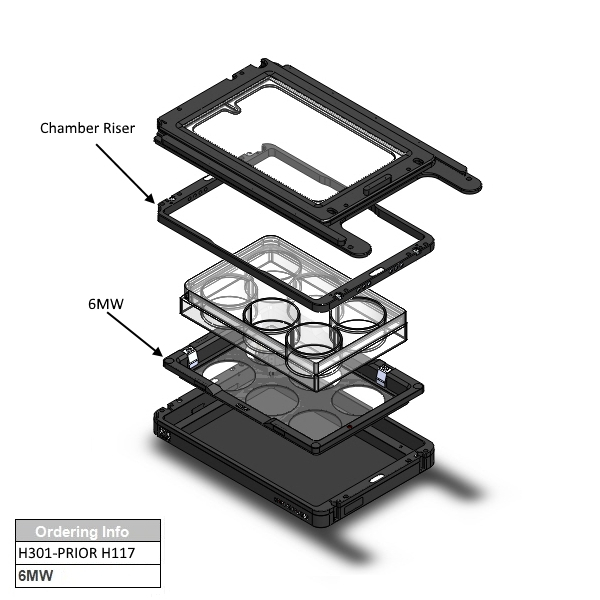

6MW	6 well plates
12MW	12 well plates
24MW	24 well plates
24MW-NUNC	24-well NUNC/GREINER plates
48MW	48-well plates
96MW	96-well plates. Includes MW-OIL
MW-OIL	Open frame to image multi well plates with oil immersion objectives
1x35-M	#1 35mm Petri-dish
1xGS-M	#1 1x3in. chamberslide
1xLABTEK-M	#1 Lab-Tek 1x2 in. chambered cover glass
1xLABTEK-II-M	#1 Lab-Tek II 1x2 in. chambered cover glass
1x60-M	#1 60mm Petri-dish
1xT25-M	#1 Nunc and Greiner T25 flask
2x35-M	#2 35mm Petri-dish
2xGS-M	#2 1x3in. chamberslides
2xLABTEK-M	#2 Lab-Tek 1x2 in. chambered cover glass
2xLABTEK-II-M	#2 Lab-Tek II 1x2 in. chambered cover glass
2x60-M	#2 60mm Petri-dish
4x35-M	#4 35mm Petri-dish

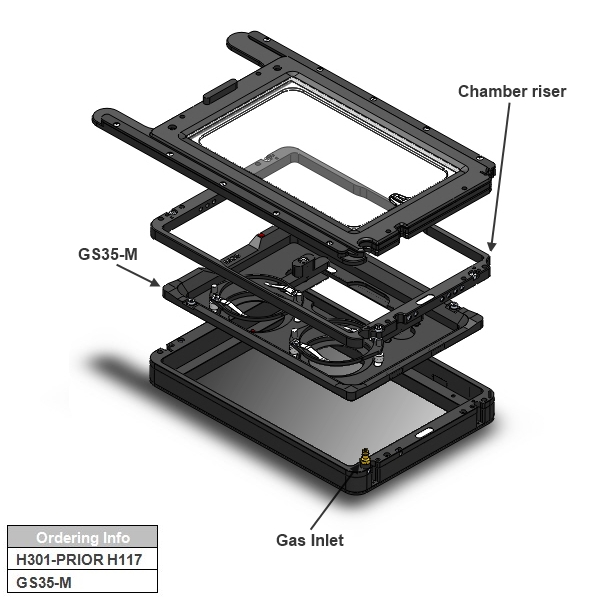

GS35-M	#1 1x3in. chamberslide and #2 35mm Petri-dish
LABTEK-35-M	#1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish
LABTEK-II-35-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish
LABTEK-60-M	#1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish
LABTEK-II-60-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish
GS60-M	#1 1x3in. chamberslide and #1 60mm Petri-dish
6035-M	#1 60mm Petri-dish and #1 35mm Petri-dish

Available LIDs

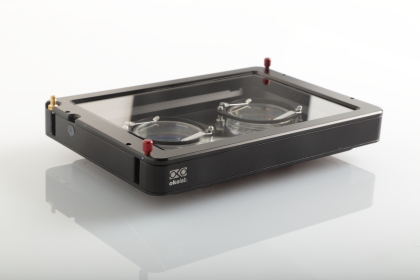

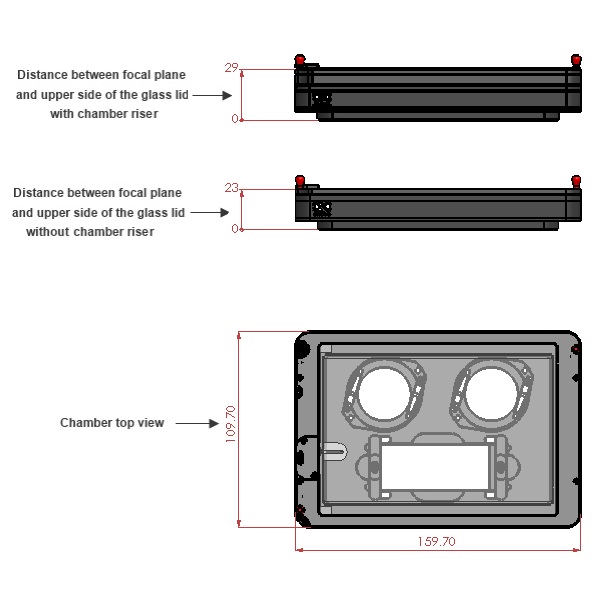

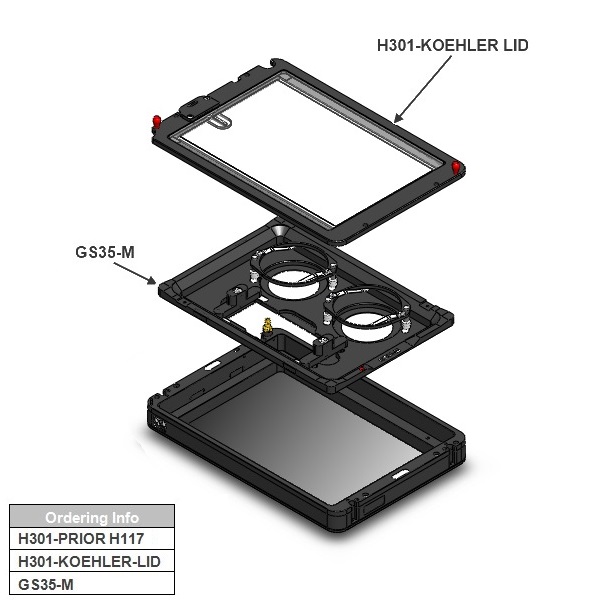

H301-KOEHLER LID	Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm
H301-INJECTION-LID	Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35

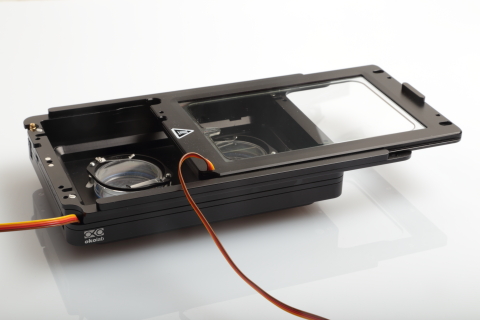

H301-LASER-INTERLOCK-LID	Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35
