Okolab offers two types of Temperature controllers to drive the heating elements for IVF application. Each controller type is available as single or dual channel, to drive one or two plates, respectively.
Controller codes are:
COMPARISON CHART
| Product Code | H401-T-SINGLE | H401-T-SINGLE-BL | H401-T-DUAL | H401-T-DUAL-BL |
|---|---|---|---|---|
| 3.2'' touch pad interface | - |  |
- | |
| Button display interface | |
- | |
- |
| Devices controlled | 1 | 1 | 2 | 2 |
| T range | up to 60°C | up to 60°C | up to 60°C | up to 60°C |
| T resolution | 0.1°C | 0.1°C | 0.1°C | 0.1°C |
| T accuracy on sample(*) | ±0.3°C | ±0.3°C | ±0.3°C | ±0.3°C |
| T sensor for calibration and metering | - | |
- | |
| Can be used as meter | - | |
- | |
| Manual calibration | requires a meter | |
requires a meter | |
| Automatic calibration | - | |
- | |
| Objective heater (**) | |
|
|
|
| Tunable heating rate | - | |
- | |
| RS232 | - | |
- | |
| mini USB | |
- | |
- |
| Data Logging via PC | |
|
|
|

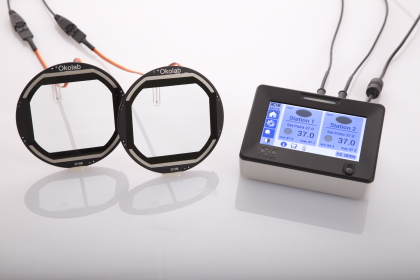

2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.

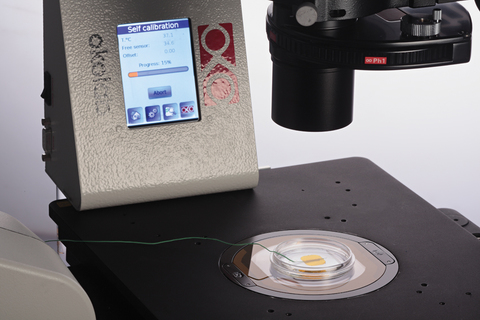

External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
Beautifully designed, simple to use and very compact.
One channel controls the metal T-Pad.
The other channel controls the Glass Plate.
On-Board Data Logging - stored in local memory
A simple procedure allows to download data to USB.
The Metal Plate creates a warm surface perfectly flush with the microscope stage. It employs a surface sensor to ensure the highest accuracy on temperature reading.
The Metal Plates require H401-T-CONTROLLER, which can control independently up to two devices.
Beautifully designed, simple to use and very compact.
It can control up to 2 items.
One channel controls the metal T-Pad.
The other channel controls the Glass Plate.
On-Board Data Logging - stored in local memory
A simple procedure allows to download data to USB.
Plates for Inverted / Upright microscopes
H401-NIKON-TI-SR-METALCompatibility: Nikon T/Ti-SR Circular Observation opening:24 mm Features: flush with the stage |
 |
H401-OLYMPUS-IX-SUSP-METALCompatibility: Olympus stages
Circular Observation opening:24 mm Features: flush with the stage |
 |
H401-K-FRAME-METAL-FLAT or H401-K-FRAME-METAL-RECESSEDCompatibility: Stages with K-frame insert (160x110mm)
Features:
|
  |
H401-K-FRAME-METAL-GLASSCompatibility: Stages with K-frame insert (160x110mm)
Features: flush with the stage
|
 |
H401-PRIOR H117-METAL-RECESSEDCompatibility: Prior H117 Features: recessed to provide the same focal plane as the stage |
 |
H401-NIKON-TI-S-ER-METALCompatibility: Nikon Ti-S-E or Ti-S-ER Observation opening: 24 mm diameter Features: recessed with respect to the rest of the stage to keep the same focal plane of the stage and compatible with oil immersion lenses |
 |
H401-NIKON-NI-S-E-METALCompatibility: for Nikon upright microscope Ecplipse with NI-S-E-motorized stage Observation opening: 27 mm diameter Features: flush with the stage |
 |
H401-UP-METALCompatibility: all the upright microscopes equippend with glass slide traslators Observation opening: 40x15 mm Features: flush with the stage |
 |
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
H301-T-UNIT-BL-PLUS is the most advanced solution for Temperature Control. It is compatible with Digital Gas Controllers and with Active Humidity Controller to ensure best environmental control for live cell imaging.
H301-T-UNIT-BL-PLUS has five independent temperature channels: chamber base, chamber lid, objective heater, sample temperature sensor, room temperature sensor.
download Data Sheet for complete description of the experimental methodology
Smart Box connects to the Bold Line Controller and provides the following features:
Smart Box connects to the Bold Line Controller and provides the following features:
Smart Box connects to the Bold Line Controller and provides the following features:
"Okolab is a provider of complete and reliable solutions for Live Cell Microscopy"
Our IVF product line comprises Glass and Metal Temperature controlled plates for inverted and stereo microscopes and a centralized CO2/O2 controller to feed mini incubators.
