UNO-COMBINED-CONTROLLER

The UNO-COMBINED-CONTROLLER comprises the Temperature controller, the CO₂/Air manual mixer and the Humidity Module. It is compatible with all the Stage Top Chambers and with the Okolab objective heater. It operates in chamber feedback mode. Sample feedback mode is possible via PC with the addition of the software package UNO-TS.

UNO-COMBINED-CONTROLLER has four independent temperature control channels: chamber base, chamber lid, objective heater, humidity module.

Temperature

T Range: from 3°C above ambient to 60°C
T Accuracy:
- ± 0.3°C in chamber feedback mode
- ± 0.1°C in sample feedback mode with UNO-TS software

Gas Mixing

Manual mixing of Air and 100% CO2 by means of floating ball flow meters
CO2 range: 0-15%; Accuracy at 5% CO2: ± 1%
Compatible with OKO-AIR-PUMP for operation with background air

Humidity

Temperature controlled bubbling column
Humidification capacity at 37°C: gas relative humidity reaches 75% ca.

UNO-TS software

Data logging via UNO-TS software
External temperature sensor for calibration and metering purposes (supplied with UNO-TS)
Automatic calibration of the objective heater via UNO-TS software

H301-T-UNIT-BL-PLUS

H301-T-UNIT-BL-PLUS is the most advanced solution for Temperature Control. It is compatible with Digital Gas Controllers and with Active Humidity Controller to ensure best environmental control for live cell imaging.

H301-T-UNIT-BL-PLUS has five independent temperature channels: chamber base, chamber lid, objective heater, sample temperature sensor, room temperature sensor.

Temperature Range: from 3°C above ambient to 60°C
Temperature Resolution: 0.1°C
Temperature Accuracy: ± 0.1°C in sample feedback mode, ± 0.3°C in chamber feedback mode
Controls up to # 5 Temperature sensors:
- Chamber Base
- Chamber Lid
- Sample T Sensor
- Room T Sensor
- Objective Heater T sensor
Compatible with:
- Objective Heater
- Active Humidity Controller
- Digital Gas Controllers
- Smart Box data logger
SDK available for integration in third party software
Drivers available for: NIS Elements, Metamorph, Micormanager

H301-T-UNIT+Obj-T_480x272.JPG — H301-T-UNIT-BL-PLUS

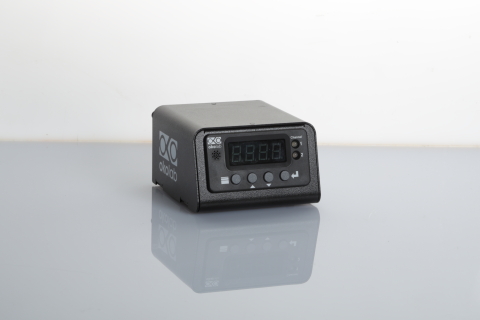

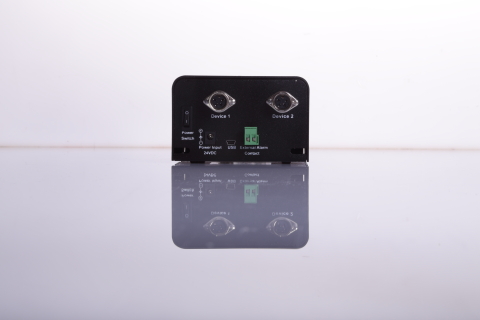

H401-T-DUAL

H401-T-DUAL is a 2-channel button display T controller which can be employed to control the stage top chambers, the heated plates and / or the objective heater. It is not compatible with gas or humidity controllers

FEATURES

Temperature Range: from 3°C above ambient to 60°C
T resolution: 0.1°C
Chamber feedback operation
Data logging via USB and DATA LOG software
Button Display user interface

H401-T-DUAL for Stage Top Chambers

One T channel controls chamber base and one T channel controls the lid
Temperature Accuracy: ± 0.3°C if room remains within ± 1°C
Feedback mode: chamber feedback
YES: it is a good solution if Temperature control of the incubating chamber is the only requirement
NO: it is not a good solution if Gas and Humidity control is also required

H401-T-DUAL + warm plates

YES: it is a good solution in combination with two devices. See also H401-T-DUAL-BL
NO: it is not a good solution in combination with only one device. In this case, see H401-T-SINGLE and H401-T-SINGLE-BL

H401-T-DUAL + Objective Heater

YES: it is a good solution to control the objective heater + one warm plate. See also H401-T-DUAL-BL
NO: it is not a good solution in combination with the objective heater only. In this case, see H401-T-SINGLE and H401-T-SINGLE-BL
